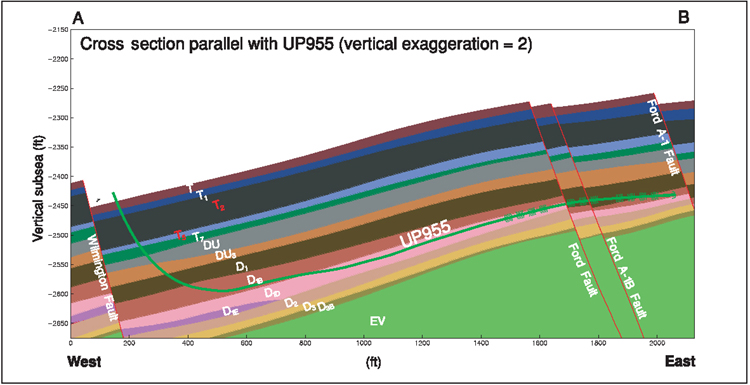

Figure 9. Cross section A-B, which follows the well course of UP 955. Perforations are shown on well course. The onlap of the D1E is shown; no detail below EV is shown. The section is scaled in feet and has a 2x vertical exaggeration. The locations of the cross section and well UP 955 are also shown in Figures 3, 4, 6, and 8.
