--> Figure 4

Datapages, Inc.Print this page

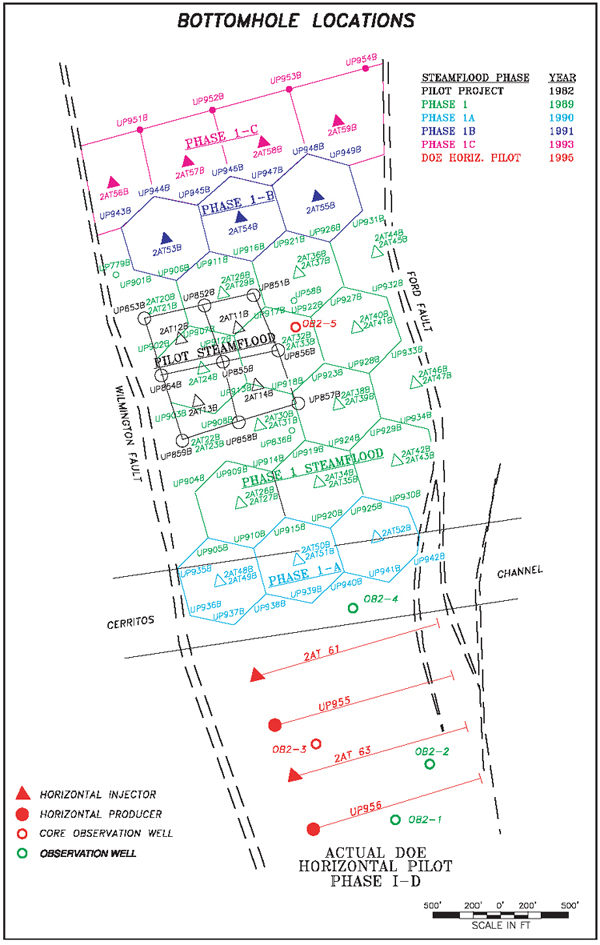

Figure 4. Map of Fault Block II area showing the location of the Wilmington oil field Tar zone, Fault Block II-A steamflood project. Each phase of the project is shown in color code. The project described here focuses on the southern area where the four horizontal wells were drilled. Cross section A-B follows the well course of UP955.
