GCAutotracking Horizons in Seismic Records*

Satinder Chopra¹ and Kurt J. Marfurt²

Search and Discovery Article #Previous Hit41489Top (2014)
Posted November 17, 2014

*Adapted from the Geophysical Corner column, prepared by the authors, in AAPG Explorer, November, 2014, and entitled "Autotracking Your Way to Success". Editor of Geophysical Corner is Satinder Chopra ([email protected]). Managing Editor of AAPG Explorer is Vern Stefanic.

¹Arcis Seismic Solutions, TGS, Calgary, Canada ([email protected])
²University of Oklahoma, Norman, Oklahoma

General Statement

A horizon is a reflection surface picked on a 3-D seismic data volume that is considered to represent either a lithologic interface or a sequence stratigraphic boundary in the subsurface. Usually, an interpreter begins the exercise of identifying the different subsurface horizons by correlating the available well log data with the seismic data. In its simplest form, such identification can be done by hanging an impedance log curve on the seismic data – or more quantitatively, by generating a synthetic seismogram from the impedance log curve using an appropriate wavelet and correlating the result with measured seismic traces about the well. Depending on the seismic data quality and either the presence or lack of isolated strong reflectors, identifying horizons can be a trivial exercise or a challenging problem.

♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

















♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

















♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

















♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

















♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

















♦General statement
♦Figures
♦Metod
♦Examples
♦Conclusions

Figure Captions

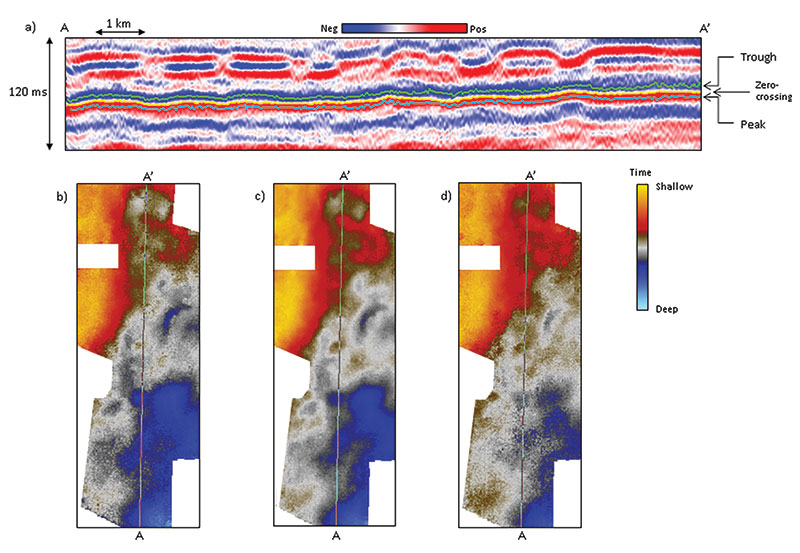

Figure 1. (a) Vertical slice AA' through seismic amplitude showing three alternative horizon picks corresponding to autotracked troughs, zero-crossings (going from trough to peak), and peaks. Note how the yellow zero-crossing horizon pick is smoother. Corresponding time-structure maps computed from picks of (b) peaks, (c) zero-crossings, and (d) troughs. Note that (c) is less contaminated by noise. Data courtesy of Arcis Seismic Solutions, TGS.

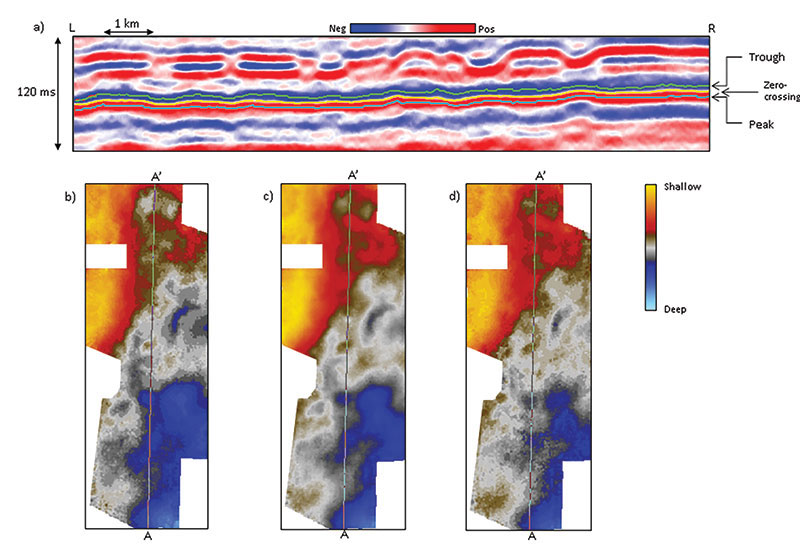

Figure 2. (a) Vertical slice AA' through seismic amplitude after structure-oriented median filtering showing three alternative horizon picks corresponding to autotracked troughs, zero-crossings (going from trough to peak), and peaks. Corresponding time-structure maps computed from picks of (b) peaks, (c) zero-crossings, and (d) troughs. All three time-structure maps exhibit less noise, though (b) and (d) exhibit a "patchy" appearance common to median filters. Data courtesy of Arcis Seismic Solutions, TGS.

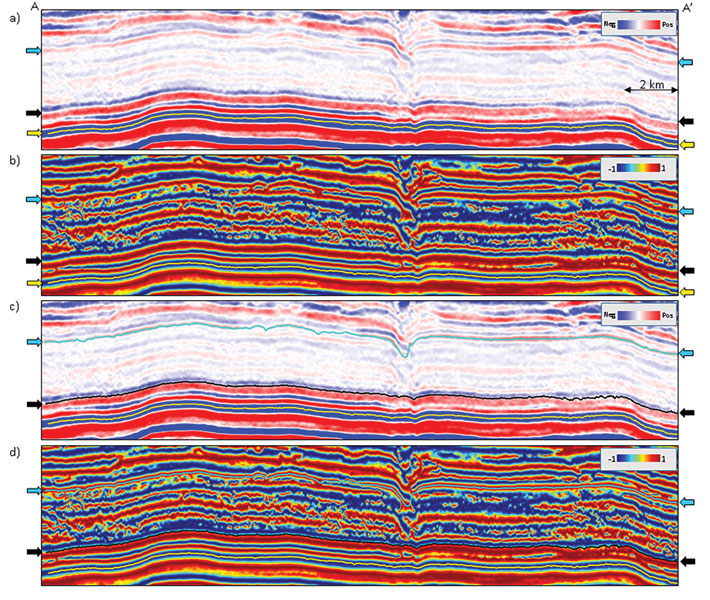

Figure 3. Segment of a seismic section (crossline) through (a) the input seismic volume after median filtering, and (b) the equivalent section through the cosine of instantaneous phase attribute. The prominent horizon in yellow was autotracked on the blue trough and is shown on both sections. The zero-crossing at the location of the black arrows and the peak at the location of the cyan arrows cannot be successfully autotracked. In contrast, autotracking works well for these horizons on the cosine of instantaneous phase attribute shown in (d) and then overlaid on the seismic shown in (c). They seem to fit perfectly.

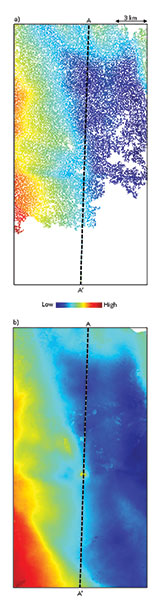

Figure 4. Autotracking attempted on seismic data on the zero-crossing horizon indicated by the black arrows on Figure 3. The lower part of the horizon was not successfully tracked. Similar autotracking attempted on cosine of instantaneous phase attribute tracks the horizon completely. Data courtesy of Arcis Seismic Solutions, TGS.
