GCCauses and Appearance of Noise in Seismic Data Volumes*

Satinder Chopra¹ and Kurt J. Marfurt²

Search and Discovery Article #41476 (2014)
Posted November 3, 2014

*Adapted from the Geophysical Corner column, prepared by the authors, in AAPG Explorer, October, 2014. Editor of Geophysical Corner is Satinder Chopra ([email protected]). Managing Editor of AAPG Explorer is Vern Stefanic.

¹Arcis Seismic Solutions, TGS, Calgary, Canada ([email protected])
²University of Oklahoma, Norman, Oklahoma

General Statement

Seismic data are usually contaminated with noise, which refers to any unwanted features in the data. These unwanted features may actually be somebody else's signal, such as converted waves in what we think of as "P-wave" data – but more commonly, these unwanted "noise" features provide little or no information about the subsurface, and are referred to as random noise and coherent noise. Examples of random noise include wave action in a marine environment, wind and vehicle traffic in a land environment, and electronic instrument noise in both environments.

There are two types of coherent noise:

  • Coherent noise that is not generated by the seismic experiment, such as 60 Hz powerline noise and pumpjack noise.
  • Coherent noise that is generated by the seismic experiment, such as ground roll, reverberating refractions and multiples.
  • On processed data, noise that looks random in time may be highly organized in space – such as acquisition footprint, which is highly correlated to the acquisition geometry. The least ambiguous but most difficult to address type of "noise" is the total absence of signal, such as dead traces and lower-fold areas corresponding to the unrecorded offsets and azimuths. Whatever their cause, all these types of seismic noise can result in significant artifacts that may negatively impact subsequent interpretation products, from simple structural and spectral attributes through prestack impedance inversion, to AVAz analysis.

    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

















    ♦General statement
    ♦Figures
    ♦Suppression of noise
    ♦Examples
    ♦Conclusions

    Figure Captions

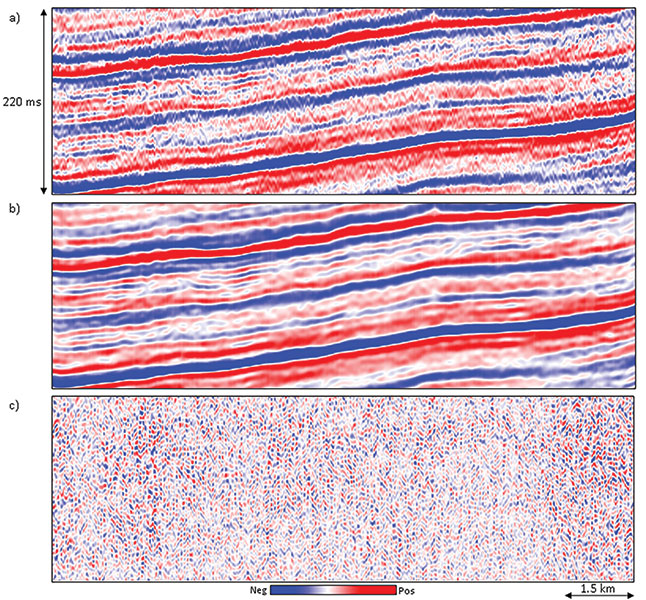

    Figure 1. Vertical slice through seismic amplitude volumes (a) before, and (b) after principal component structure-oriented filtering, and (c) the difference section. Notice the broken inclined wave trains of noise are seen in the difference section and the display after structure-oriented filtering looks clean with the reflections much more coherent. (Data courtesy of Arcis Seismic Solutions, TGS)

    Figure 2. Vertical slices through legacy data acquired over Vacuum Field, New Mexico (a) before, and (b) after edge-preserving structure-oriented filtering using the default parameters in a commercial software implementation. (c) The difference between the two, showing the desired rejection of the steeply dipping migration artifacts, but also of the higher frequency components of the seismic signal. (Data courtesy of Marathon Oil Co.)

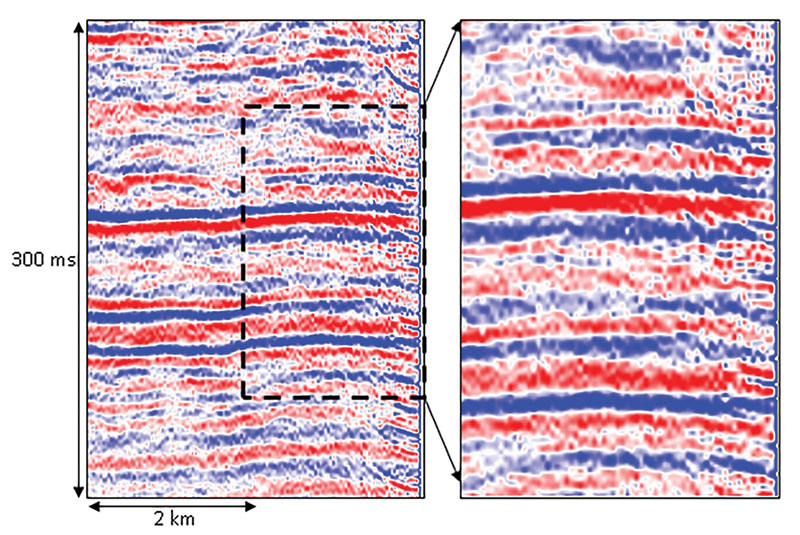

    Figure 3. Segment of an inline seismic section very close to the edge of the survey. Notice the edge effect to the right (migration smiles), as well as the noise in the data. A zoom of the portion in the dashed rectangle shows the noise bursts and the incoherency of the reflections. (Data courtesy of Arcis Seismic Solutions, TGS)

    Figure 4. Segment of a seismic section from (a) the input seismic volume, (b) the same data after structure-oriented filtering, and (c) the same input data after 3-point median filtering. Notice the fine amplitude bursts are taken care of much better with median filtering than structure-oriented filtering. (Data courtesy of Arcis Seismic Solutions, TGS)

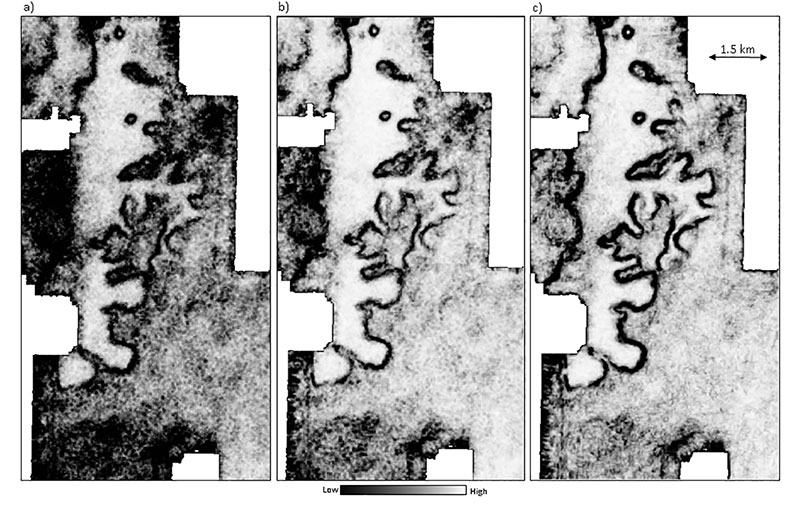

    Figure 5. Time slices (at 1362 ms) from the coherence volume generated on (a) input seismic data volume, (b) input seismic data volume with structure-oriented filtering, and (c) the input with median filter. Notice the clarity on the coherence run on median filtered output as compared with coherence run on input data with structure-oriented filtering. (Data courtesy of Arcis Seismic Solutions, TGS)

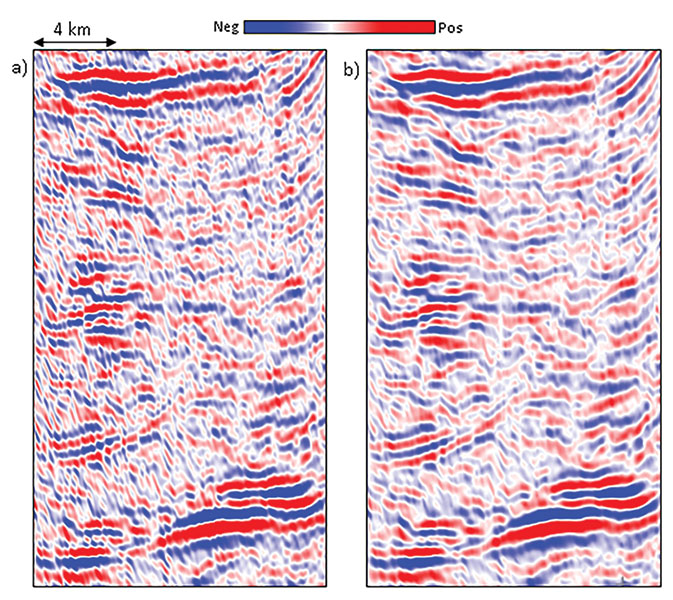

    Figure 6. Segment of a seismic section from (a) the input seismic volume, and (b) the same data after filtering coherent noise using a dip filter. Notice the dipping noise has been suppressed and the reflections are looking more coherent and continuous. (Data courtesy of E&B Resources)

    Figure 7. Time slice at t=1044 ms through seismic amplitude volumes (a) before, (b) after principal component structure-oriented filtering, and (c) after 3-point median filtering. Notice the background noise is better suppressed by the median filtering than by the principal component structure-oriented filter. However, while the E-W acquisition pattern seen seems to be toned down a bit after filtering, it is not eliminated completely. The black dashed line shows the location of the crossline segments. The difference displays between (a) and (b) and (a) and (c) are shown in (d) and (e) respectively. (Data courtesy of Arcis Seismic Solutions, TGS)

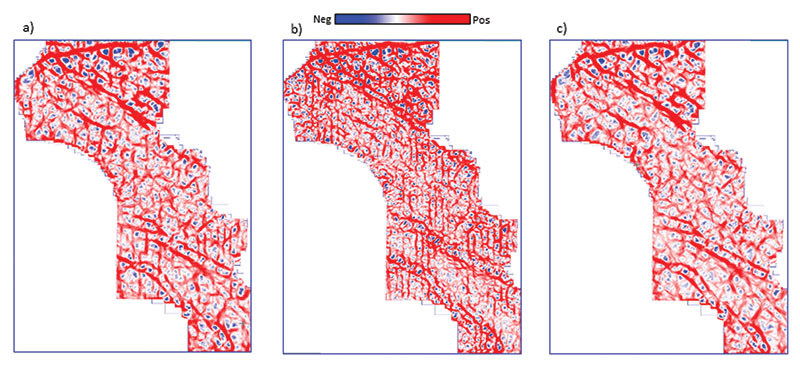

    Figure 8. Time slices through most-positive curvature volumes generated at (a) long-wavelength, (b) intermediate wavelength, and (c) long-wavelength after foot-print filtering. Notice the north-south footprint pattern has been suppressed after kx-ky filtering of the input data. (Data courtesy of Arcis Seismic Solutions, TGS)
