--> --> Figure 5

Datapages, Inc.Print this page

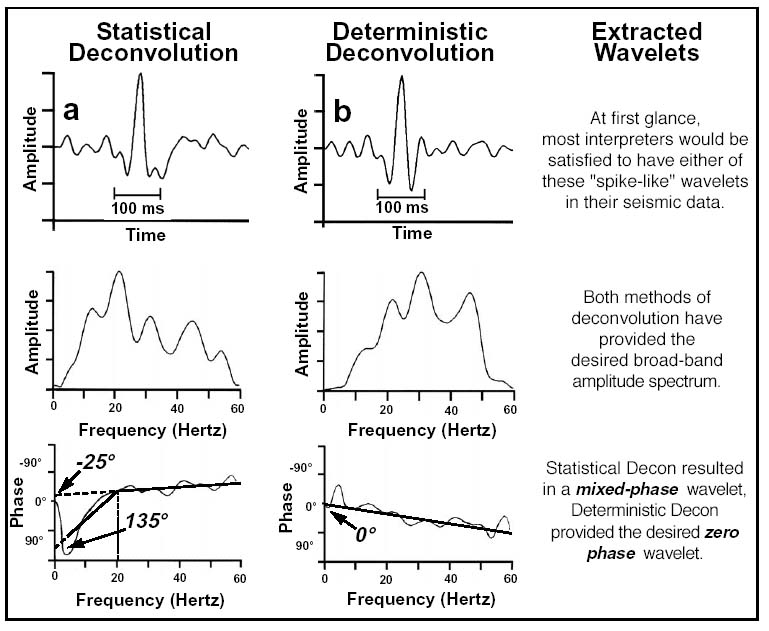

Figure 5. These wavelets have been extracted from the seismic in Figures 7 and 8 using the well reflection Coefficients Statistical Deconvolution (a) commonly produces mixed-phase wavelets. The broad band zero phase processing goal of deconvolution has been met using Deterministic Deconvolution (b).
