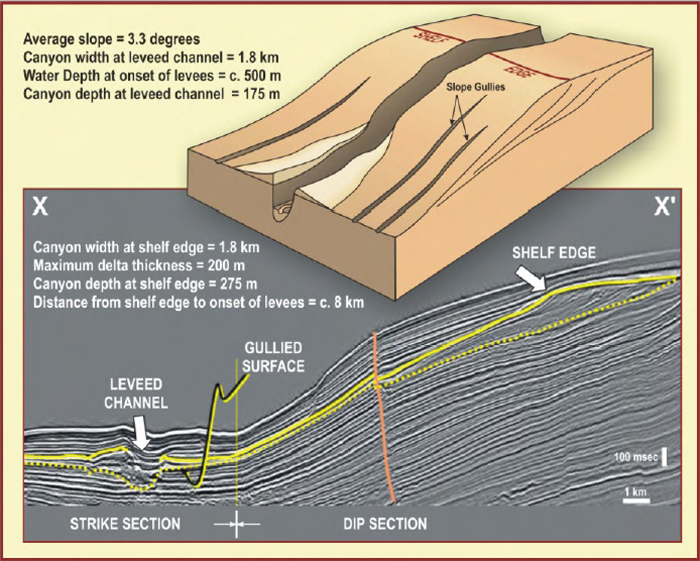

Figure 2-14. Dip-oriented seismic reflection profile from a buried shelf-edge delta (same as inset in Figure 2-12) is linked to its associated down-dip leveed channel. Inset: schematic diagram of a shelf-edge delta, canyon-slope channel, down-dip channel-levee complex, and slope gullies.
