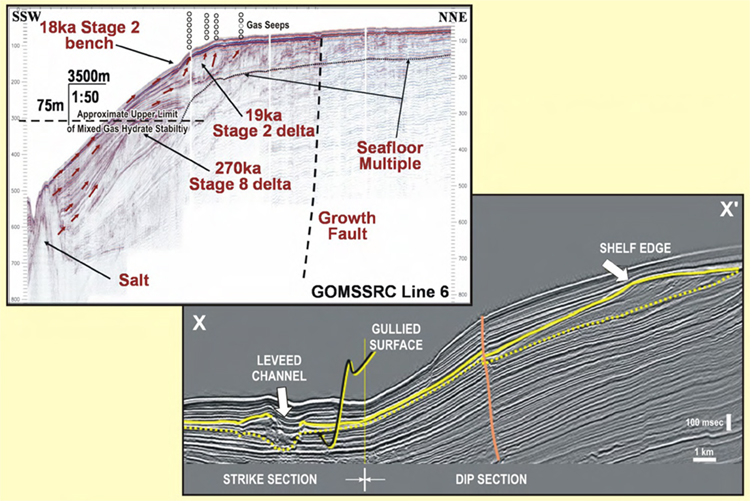

Figure 2-12. Regional seismic profile illustrating turbidite deposits between shelf-edge delta and down-dip channel-levee system. Inset: seismic profile (GOMSSRC Line 6, same as Figure 1-3)across the Stage 2 Lagniappe delta at the present shelf-edge and an underlying Stage 8 delta.
