The Hunt for Acquisition and Drilling Prospect Leads*

By

Mike Cherry1



Search and Discovery Article #40122 (2004)



*Adapted from oral presentation, entitled “Using Industry Applications Software for Analyzing Data to High Grade Acquisition and Drilling Prospects,” at AAPG Mid-Continent Section Meeting, Tulsa, OK, October 12-14, 2003, and at Tulsa Geological Society Meeting, March 9, 2004.



1CEC Energy Consultants, The Woodlands, Texas (www.CECEnergyconsultants.com) ([email protected]



Abstract

Recent years have seen remarkable technological advances in industry applications software that is capable of analyzing large corporate and/or industry databases, giving geoscientists and engineers the capability of high grading and screening acquisition and drilling prospects.

Using industry applications software, geoscientists and engineers can sort through large datasets to categorize/compile information in order quickly to make generalizations and gain knowledge and background information on a play or trend. This presentation will provide many methods for analyzing data in order to high grade acquisitions, identify field development opportunities, identify areas within a basin that have significant multiple pay zone potential, set up regional or basin-type databases for quick look determinations for auction or acquisition screening and evaluations, and to focus on hot areas of activity.

This presentation will also demonstrate methods of how to use industry software applications and industry data to identify areas of permeability and bypassed productive pay zones that either a geoscientist or engineer could use quickly to sort data and generate acquisition and drilling prospect leads.







uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38































































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38

































































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38

































































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38

































































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38



























































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38



























































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38



























































uAbstract

uIndustry software

  uFigures 1-6

uMapping software

uAcquisition prospects

uDrilling prospects

  uFigure 7

uUnder-utilized functions

  uFigures 8-14

uUnder-utilized analyses

  uFigures 15-23

  uFigures 24-30

uDarcy equations & PI

  uFigures 31-38





Available Industry Software



Figure Captions (1-6)

Figure 1. Cross section prepared using Landmark – Geographix software.

Figure 2. Illustration showing components for use of Geoplus – Petra software.

Figure 3. Map with lines of cross sections, showing example of mapping using Schlumberger – GeoQuest software.

Figure 4. Software for analysis of reserves and economics. A. IHS – Power Tools. B. Landmark – Aries. C. OGRE Partners – OGRE. D. Schlumberger – Merak Peep.

Figure 5. Production curve, for a well in the Watonga-Chickasha Trend, Anadarko basin, Oklahoma, used for estimate of reserves.

Figure 6. Data in Microsoft Access are readily exported, as desired. A. PEC0701PDP: database. B. Top Value PV10>407,200.

Return to top.



Mapping Software Tools (Figures 1, 2, and 3

·        Landmark – GeoGraphix (Figure 1)

·        Geoplus – Petra (Figure 2)

·        Schlumberger – GeoQuest (Figure 3)



Reserves and Economic Software (Figure 4

·        IHS – Power Tools

·        OGRE Partners –OGRE

·        Landmark – Aries

·        Schlumberger – Merak Peep



Automated EUR Reserve Estimates (Figure 5)



Access Database Exports (Figure 6)



Common Uses of Mapping Software

·        Mapping attribute, net pay, isopach, and structure

·        Cross sections—stratigraphic and structural

·        Gridding and contouring techniques

·        Management presentations

·        Acreage position management

·        Field development management

·        Mainly used by drafting and geo-tech personnel



Common Acquisition Prospect Identification

·        Contact A&D brokers to see what they represent that is for sale.

·        Auctions

·        Make contacts of larger companies that typically sell large volumes of properties and attempt a negotiated purchase.



Common Development Drilling Prospect Identification

(Figure 7

·        Analyze existing HBP acreage position for infill or extensional opportunities.

·        Analyze offset operators to HBP acreage position for anomalies or drainage problems.

·        Identify field extension opportunities.

·        Analyze existing non-producing acreage position for drilling potential..



Figure Caption (7)

Under-Utilized Analytical Functions

(Figures 8, 9, 10, 11, 12, 13, and 14)



·        Petrophysical and detailed log analysis

·        Volumetric reserve analysis of reservoirs

·        Identify/compare performance and success

·        Determine continuity and compartmentalization of reservoirs.



Figure Captions (8-14)



Petrophysical and Detailed Log analysis (Figure 9)

·        Log calculations – porosity, Sw, K, lithology

·        Identify O/W or G/W contacts.

·        Calculate volumetric reserves.



Volumetric Reserve Analysis (Figure 11)

·        Calculate volumetric reserves by producing interval of a field, basin, or region.

·        Compare theoretical with actual reserves.

·        Identify anomalies for rework, recompletion, or redrill opportunities.



Analyzing Performance and Success of Other Operators

·        Identify most successful operators by year comparing EUR’s and dry holes with drilling/completion dates.

·        Map areas of regions successful operators are active.

·        Compare their activity and success with your regional interpretation.



Continuity and Compartmentalization (Figures 12, 13, and 14)

·        Verify/confirm continuity or compartmentalization of a reservoir.

·        Identify gas chromatograph fingerprints of oil or gas sample from producing zone(s).

·        Compare fingerprints of zones of offset wells to identify extensional or development opportunities.



     Under-Utilized Acquisition and Drilling-Prospect Analysis

·        Perform kh equivalent and EUR analysis.

·        Perform DST analysis for permeability indicators.

·        Perform Darcy’s calculation for well productive analysis.

·        Identify high PI well anomalies



Figure Captions (15-23)

Figure 15. Density-neutron porosity plot, showing net pay and estimate of 2,770,000 barrels of oil in-place/40 acres.

Figure 16. Database used in computing cumulative and average production rate: First 24 months of production of well, with unique well ID 35-045-21435-0000 (ERSALLUNIT).

Figure 17. Data statistics, for first 24 months of production for well with unique well ID 3504-045-21435-0000 (ERSALLUNIT).

Figure 18. Transform equation for calculation of Pseudo kh: Pseudo kh = (First 24 months production) / 1532341.

Figure 19. Database with production data for well with unique well ID 3504-045-21435-0000 (ERSALLUNIT)

Figure 20. Image of screen for creating contour grid for the first 24 months of production.

Figure 21. Image of screen for creating contour grid for EUR (ultimate gas reserves)

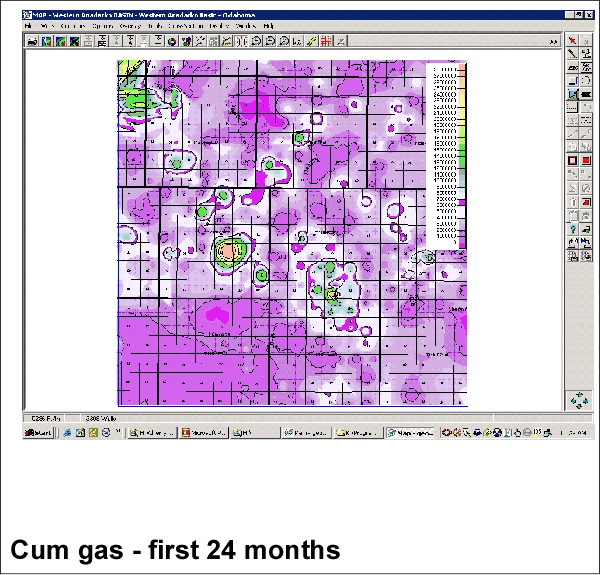

Figure 22. Map of cumulative gas production for first 24 months of production, in part of Anadarko basin, Oklahoma.
