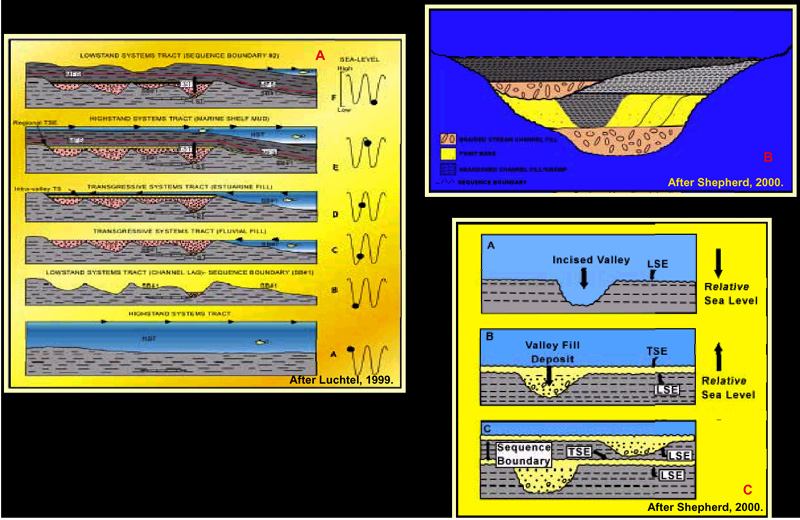

Figure 25. Evolution of upper Morrowan successions in study area. A. Depositional settings, in response to sea-level changes in cross section oriented down depositional dip (after Luchtel, 1999). B, C. Sequence as incised valley fill (LSE=lowstand surface of erosion; TSE=transgressive surface of erosion) (after Shepherd, 2000).
