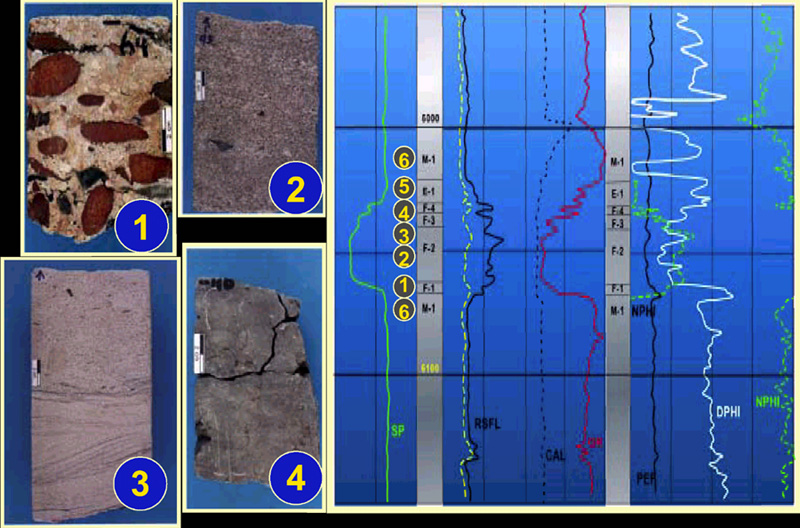

Figure 13. Four types of fluvial facies: core samples, along with positions and responses on well log. 1=lowermost paraconglomerate; 2=coarse-grained sandstone (braided stream); 3=ripple- to cross-bedded fine- to coarse-grained sandstone (meandering stream); 4=mudstone--silty/shaly interval (abandoned channel)
