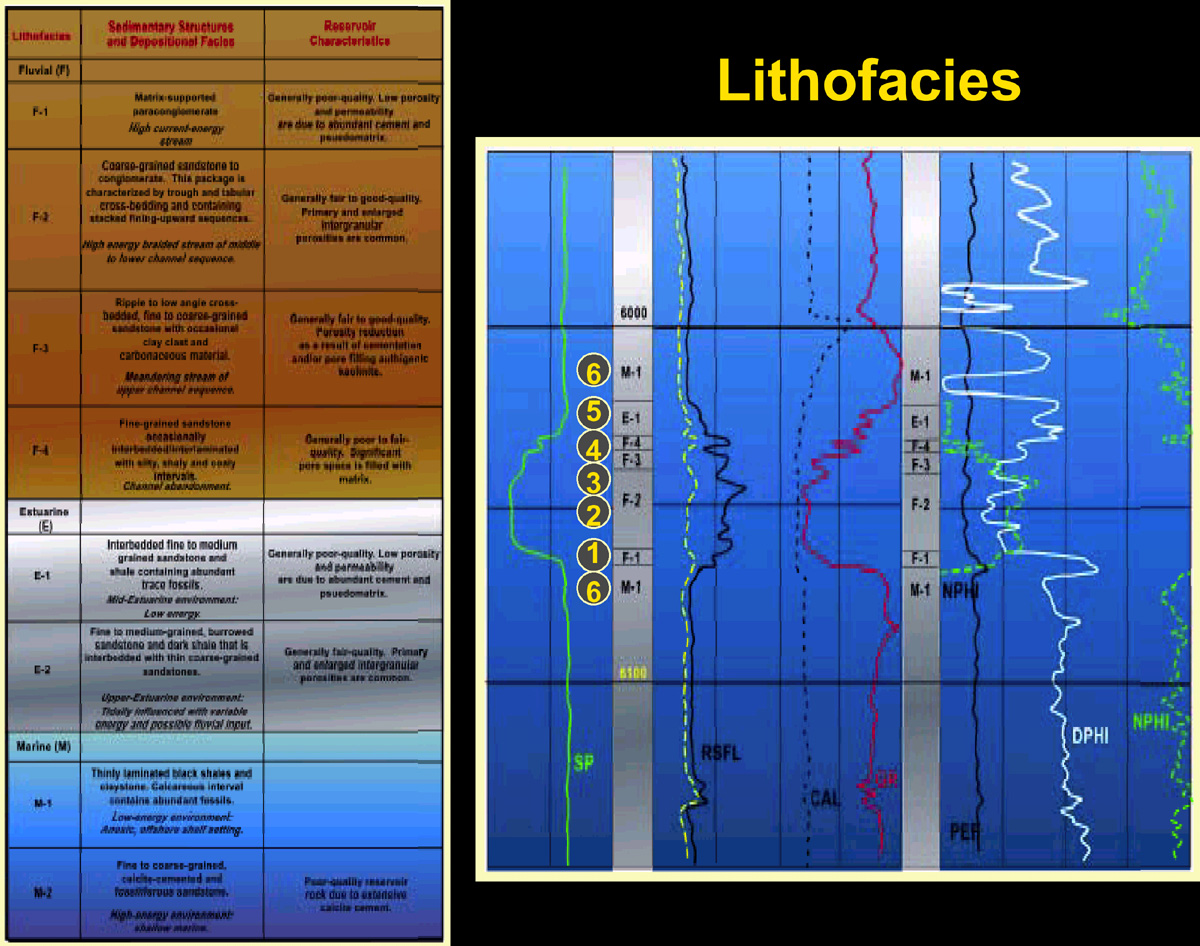

Figure 12. Stratigraphic position and log responses of the lithofacies in upper Morrowan strata, along with the chart of sedimentary structures and reservoir characteristics in Figure 11.
