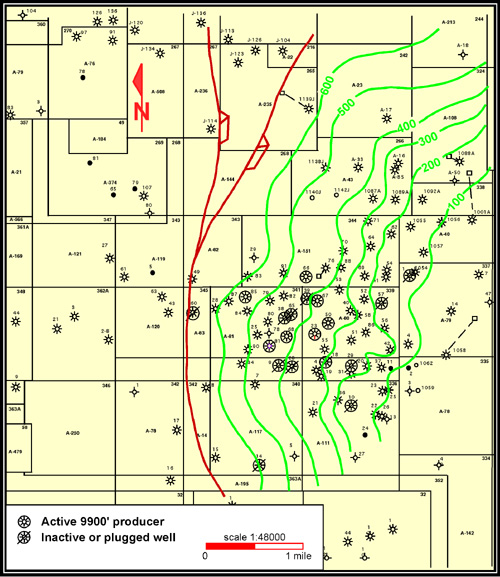

Figure 8. Thickness of the 9900-ft sandstone interval showing thickening of the sandstone toward the fault and thinning basinward across the crest of the rollover anticline in TCB Field.
