--> Figure 4

Datapages, Inc.Print this page

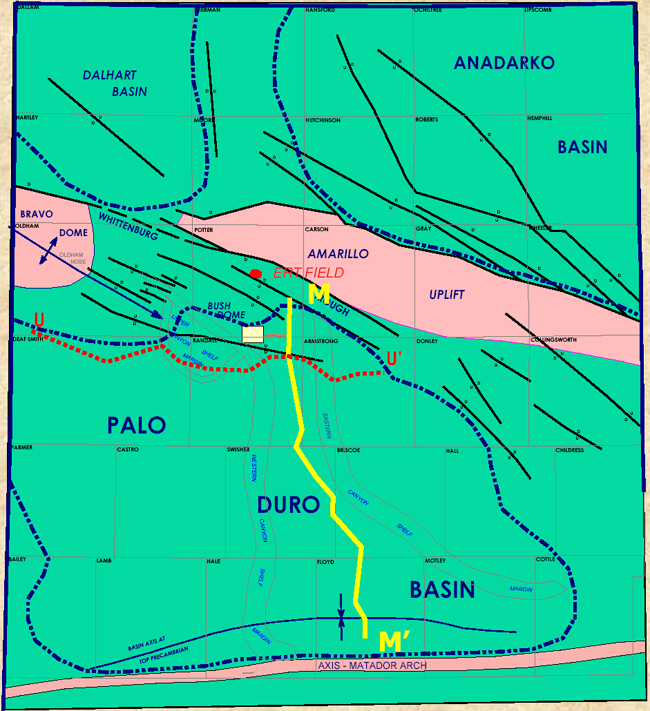

Figure 4. Tectonic framework, Texas Panhandle, with location of ERT Field and north-south stratigraphic cross-section (M-M’) (Figure 5), which extends along the basinal part (“throat”) of the Palo Duro Basin between Canyon (Missourian) shelf margins to east and west.
