--> Figure 9

Datapages, Inc.Print this page

Click on image to view full sized version.

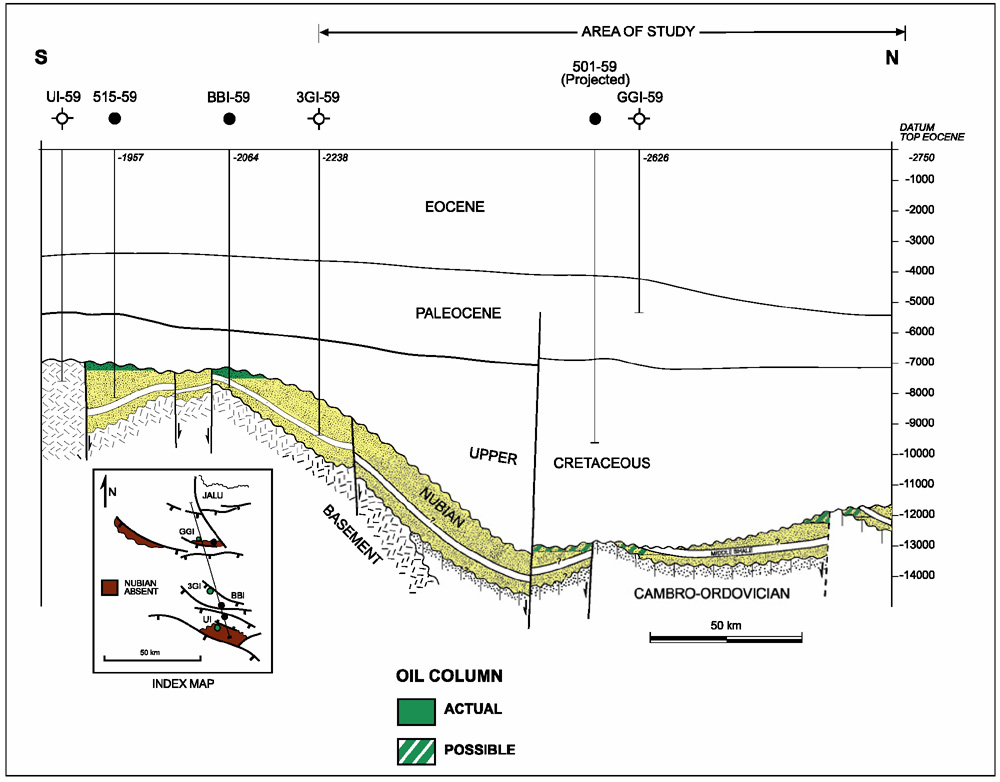

Figure 9. North-south structural cross section from the central part of the Ajdabiya trough to the Faregh oil-field area,  depicting actual and inferred Nubian sandstone trap configurations.
