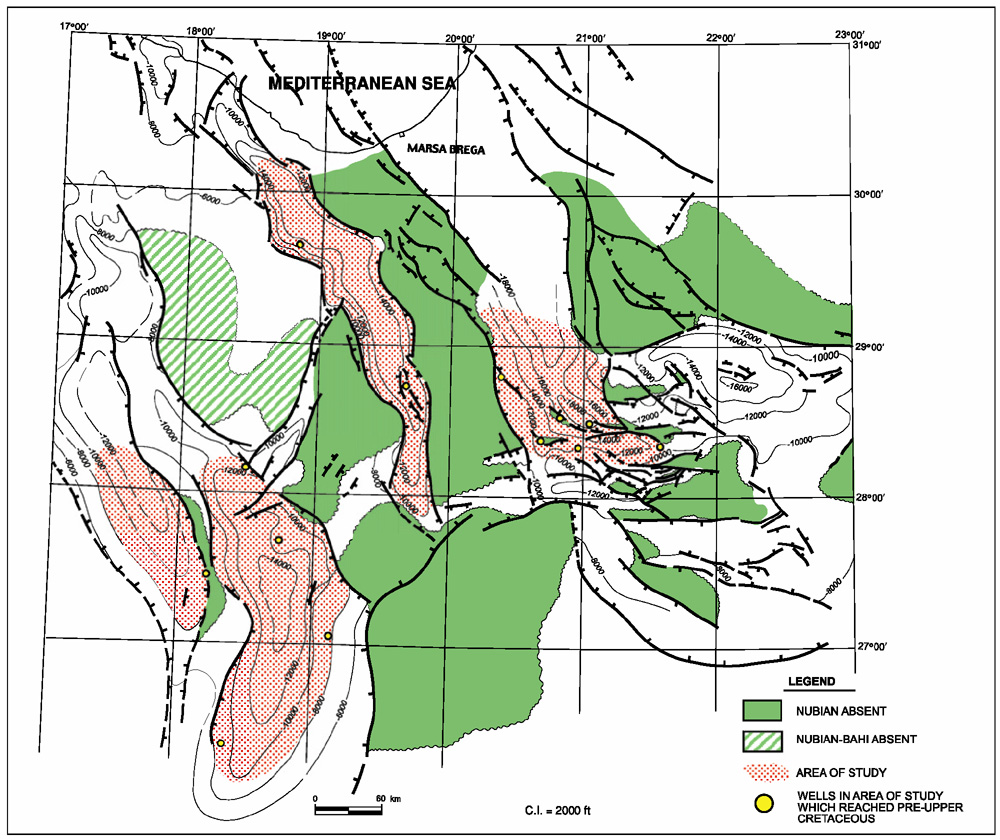

Figure 7. Structure map on the top Nubian Formation, Sirt Basin. Modified in part from Masera Corporation (1992), El-Hawat et al. (1996), and Mansour and Magairhy (1996).
