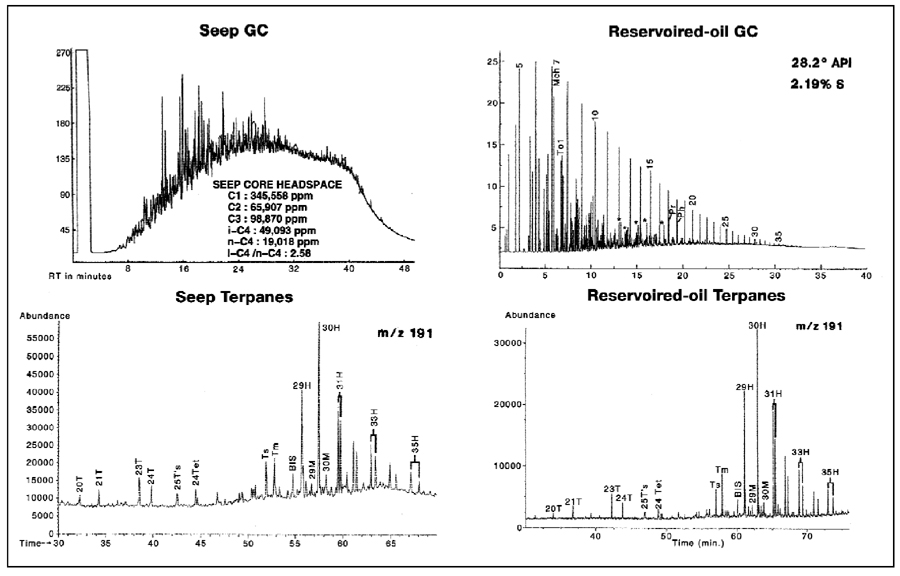

Figure 12. Comparison of a seep oil with the oil from a nearby discovery. Although the oil in the seep is heavily biodegraded and the reservoired oil is not, the strong similarity of terpane biomarkers suggests that both oils derive from a common source.
