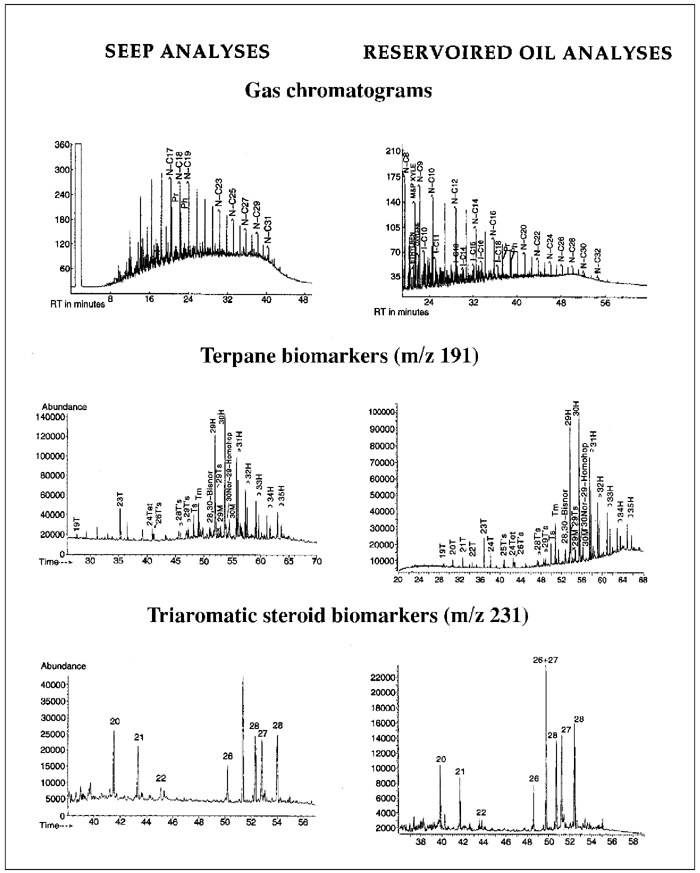

Figure 6. Comparison of deepest oil sample from sea-bottom dropcore in Figure 5 with a nearby reservoired oil sample. Although the GC indicates that the seep oil has undergone a markedly higher degree of biodegradation, the more biodegradation-resistant terpane and triaromatic steroid biomarkers are quite similar, indicating that both samples are probably derived from the same source (Tithonian).
