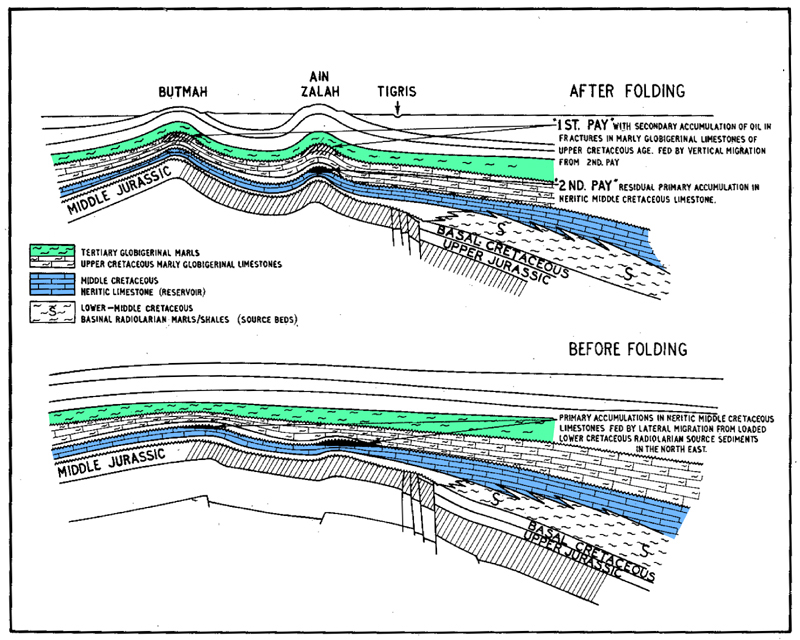

Figure 12. Schematic cross-sections of Ain Zalah area, showing the entrapment of oil in Ain Zalah and Butmah fields (after Dunnington, 1958).

Click to view sequence of cross sections.
