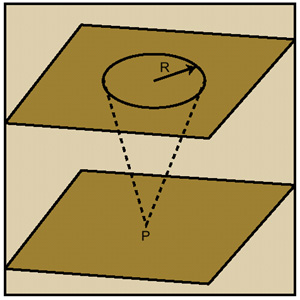

Figure 5 – A given point on a reflector affects a surface region by an area equal to the Fresnel Zone. In migration the entire Fresnel Zone must therefore be summed over to obtain the correct amplitude.
