--> Figure 3

Datapages, Inc.Print this page

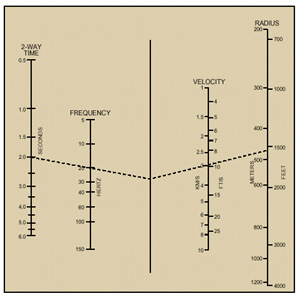

Figure 3 – Nomogram for determining Fresnel Zone radius. A straight line connecting the two-way time and frequency intersects the central line at the same point as a line connecting the average velocity and the Fresnel Zone radius. For example, a 20-Hz reflection at 2.0 seconds and velocity of 3.0 km/s has a Fresnel Zone radius of 470 m.
