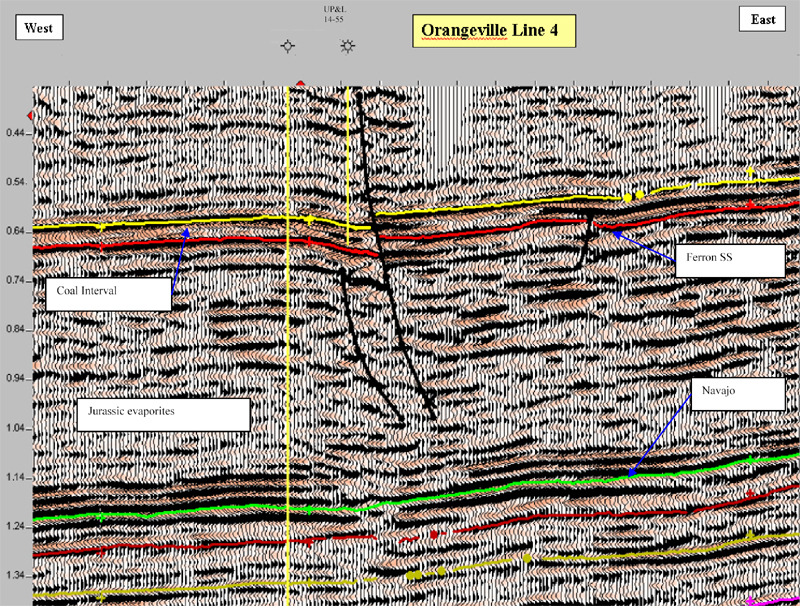

Figure 6. Buzzard Bench area, seismic line 4, showing prominent faulting of coal interval with “reverse drag” folding on the downthrown side. Folding likely increases fracturing and permeability locally near the fault creating an elongate and linear “fairway” of higher production. Note that faulting dies out into Jurassic Carmel evaporitic section.
