--> Figure 3

Datapages, Inc.Print this page

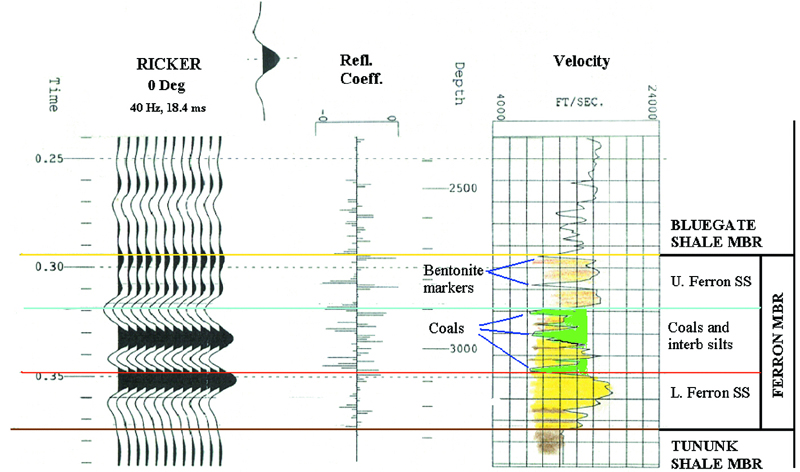

Figure 3. Synthetic seismogram and pseudo-velocity log produced from density log on the Telonis 30-157, Drunkards Wash Field. Comparison of synthetics created from density logs and from sonics in the same wells closely match this area. Note the double trough-peak set generated through the Ferron sand and coal interval.
