--> Figure 5

Datapages, Inc.Print this page

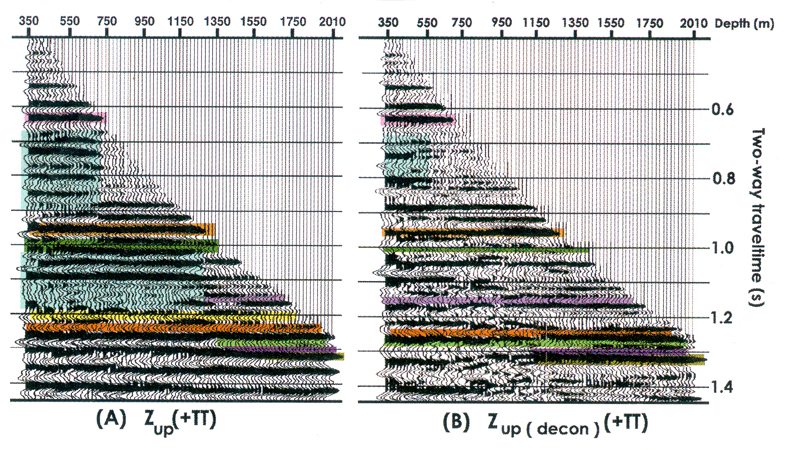

Figure 5. The deconvolved upgoing events in (B) show that the VSP deconvolution has been fairly successful when applied to the data in (A). The purple event at about 1.16 s is now continuous across all traces. Some residual multiple contamination remains on the shallow depth traces.
