--> --> Figure 1

Datapages, Inc.Print this page

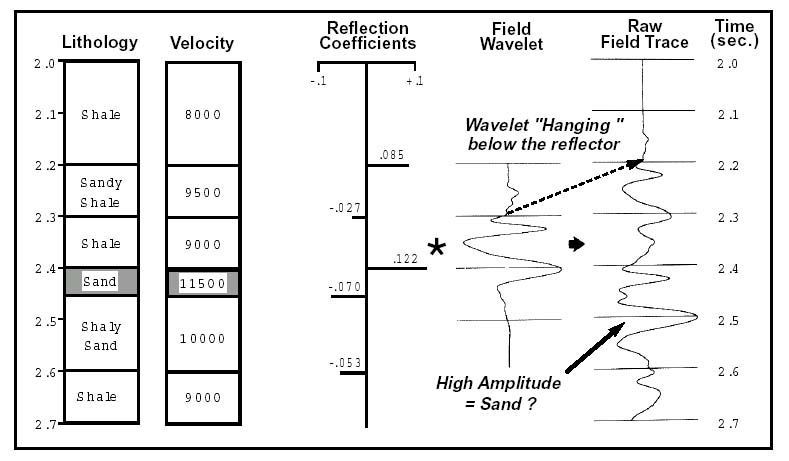

Figure 1: Lithologic boundaries define a Reflection Coefficient series, which when convolved (*) with the field wavelet results in a simulated raw field trace. Interpreting the highest amplitude event (2.5 seconds) as the reservoir sand would be wrong. This mixed-phase wavelet provides a distorted image of the actual geology.
