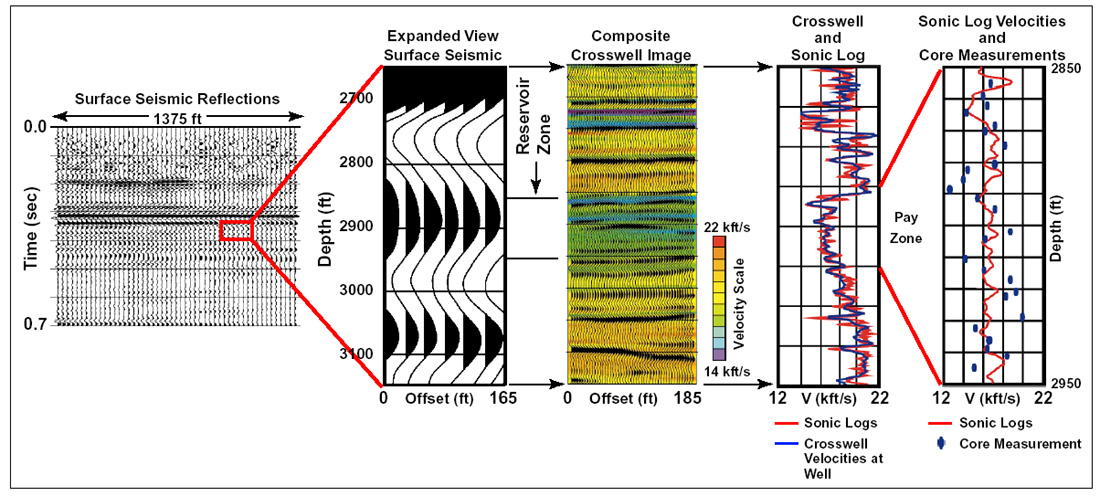

Figure 3. The crosswell reflection and velocity images (center) fill the resolution gap between modern surface seismic data (left), and the sonic log data (right center) and core measurements (far right). These data are from a West Texas carbonate reservoir.
