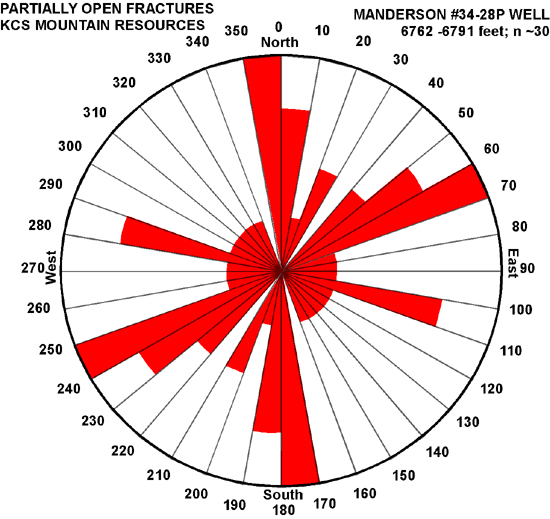

Figure 4. Oriented core analysis displayed as a rose diagram shows the strike of open and partially open fracture sets observed in the core taken from the Phosphoria formation in the 34-28P well.
