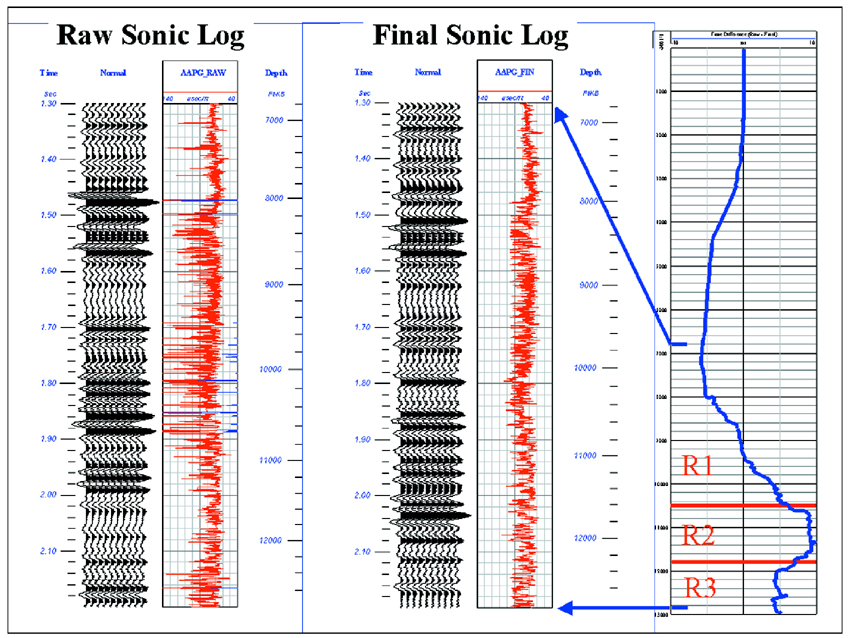

Figure 7. Comparison of the synthetic seismogram generated from the raw sonic log (left) vs. that made with the final corrected and calibrated sonic log (right). In the far right track, the drift curve shows the difference in two-way time between the raw and final sonic logs. Note the changes in required calibration at the logging run junctions, R1, R2, and R3.
