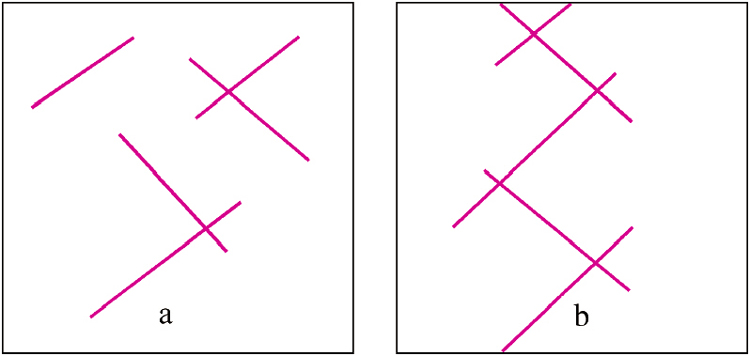

Figure 7. Examples of fracture networks that would have similar seismic attributes over the volume delineated by the square, but very different network permeability values. The pattern in Figure 7a is unconnected; fracture permeability would be zero. On the other hand, the network shown in Figure 7b is well-connected, leading to a permeable fracture network.
