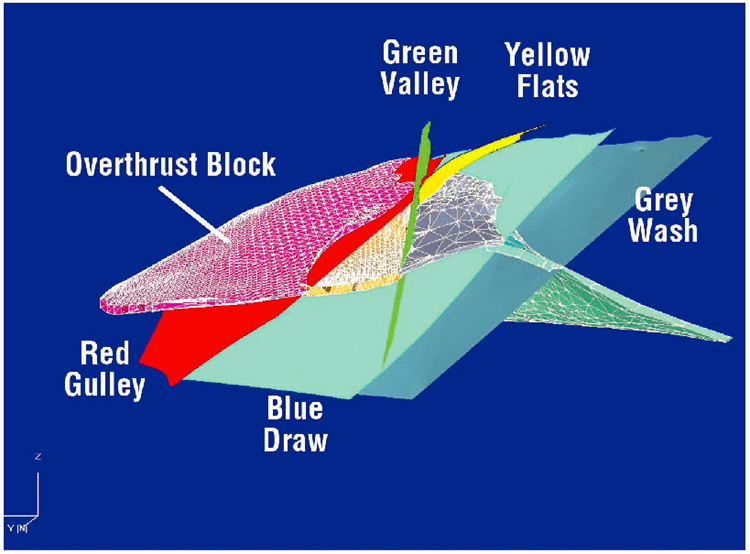

Figure 3. Outline of structural geometry for Circle Ridge Field looking from north to south. Major fault surfaces are color-coded and labeled. Overthrust block appears on the top surface and is bounded by the Red Gully Fault. Compressionial shortening is higher in the north and decreases to the south. As a result the northern part of the field is fragmented into several imbricates.
