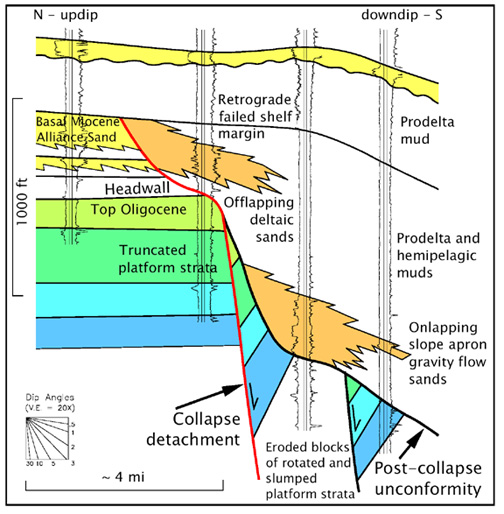

Figure 13. A stratigraphic dip section through several wells across the headwall of the lower Miocene (Abbeville shale wedge) in southwest Louisiana. In this example the rotated blocks downdip from the headwall are very thick compared to the deepwater wedge that covers them.
