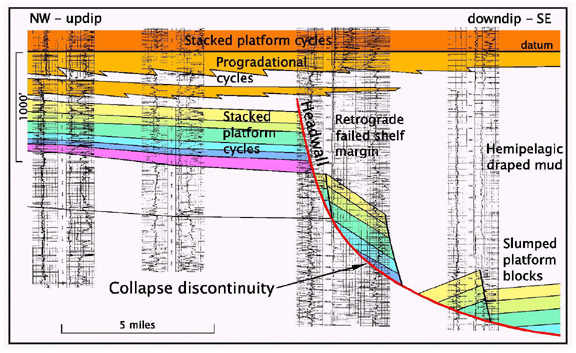

Figure 11. A stratigraphic dip section through the middle Wilcox in south Texas showing an excellent example of highly consistent updip stratigraphy abruptly replaced downdip by a thick wedge of deep water shale. The shale overlies displaced productive blocks of shallow water strata that correlate perfectly with parts of the updip section. The depiction of slump blocks is schematic.
