--> Figure 3

Datapages, Inc.Print this page

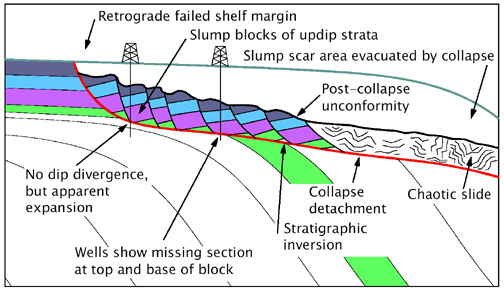

Figure 3. Features of a typical retrograde failed shelf margin in which slump blocks are a large part of the fill. The most obvious discontinuity is the post-collapse unconformity, but the collapse detachment is equally important. The latter surface has never been exposed at the sea floor, and therefore is a structural rather than stratigraphic feature. Note the possibility for stratigraphic inversion and sub-discontinuity traps.
