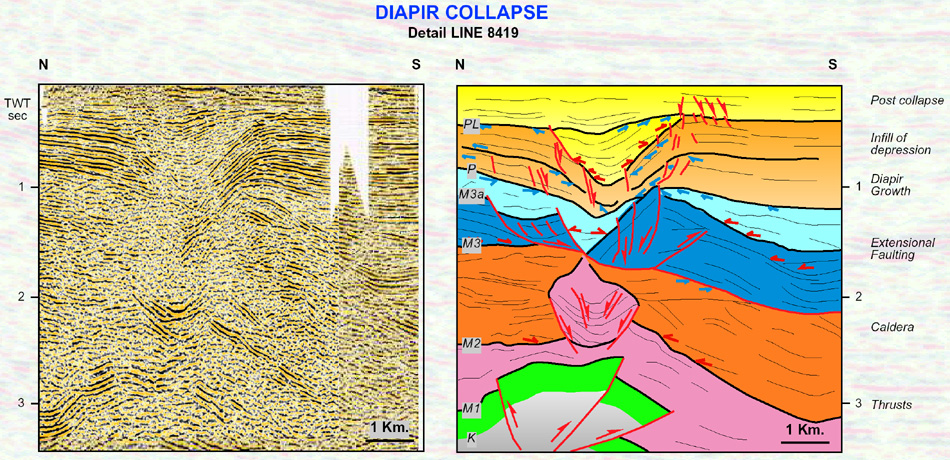

Figure 2-9. Detail of seismic section (Detail Line 8419) and interpretation of a collapse in the northern part of Zone II. Note the infill strata on top of the inclined reflectors and stratal truncations indicating progressive diapir growth.

Click here to view sequence of uninterpreted and interpreted sections.
