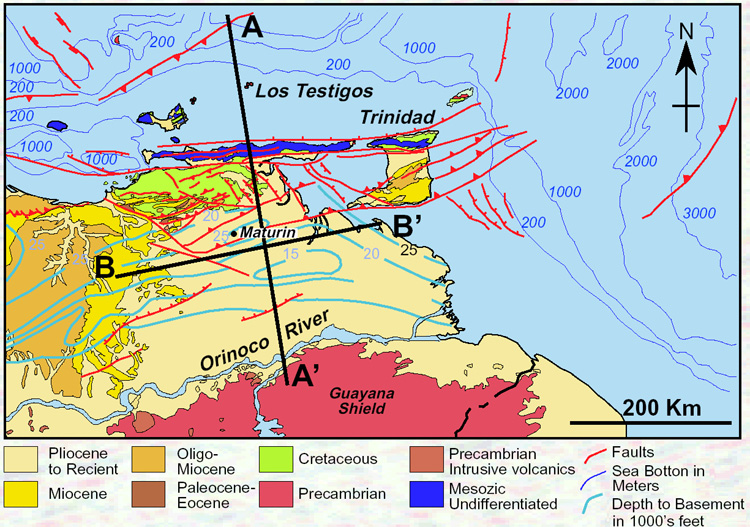

Figure 1-2. Geological map of the EVB. Note
the location of the deepest part of the basin and the shape of it.
Modified from IFP (1990). Click on AA’ to view regional cross section
(Fig. 1-3). Click on BB’ to view stratigraphic chart (Fig. 1-4).
