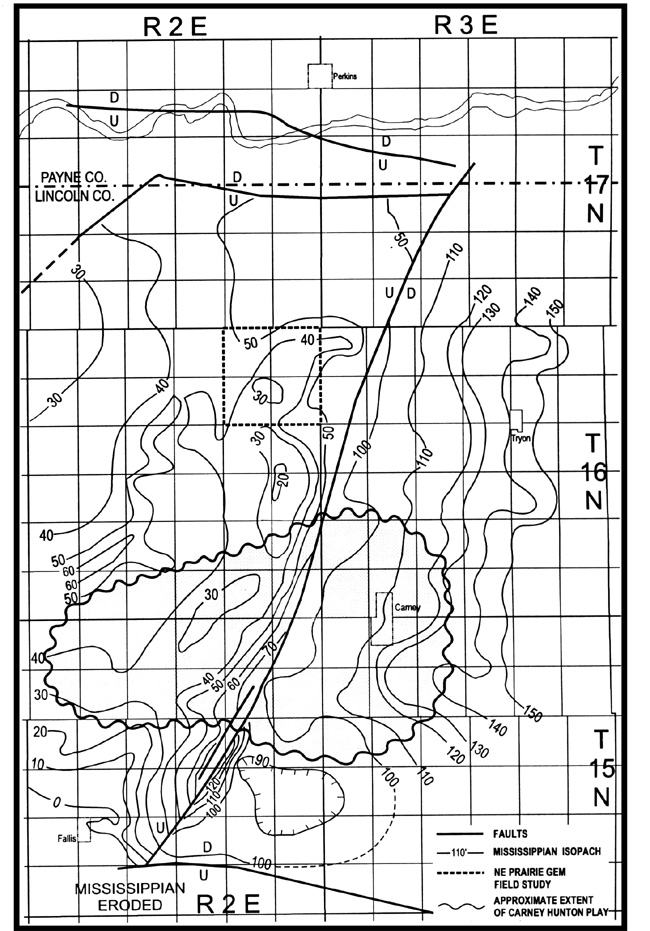

Figure 9. Isopach map of Mississippian strata in area of WCHF; a thicker section in the downthrown block of a north-northeast-trending fault indicates structural activity during deposition.
