--> Figure 23

Datapages, Inc.Print this page

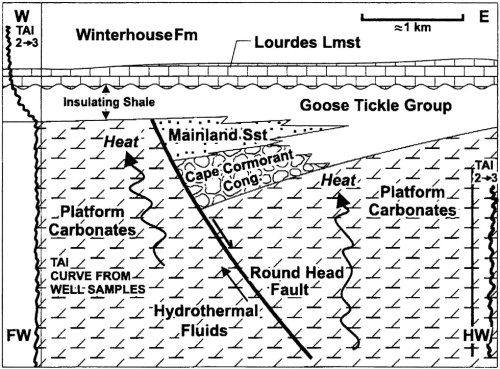

Figure 23. Proposed model for observed thermal maturity patterns invoking the Goose Tickle Group as an aquitard and thermal barrier. FW = Port au Port 1 well footwall section; HW = Port au Port 1 well hanging-wall section.
