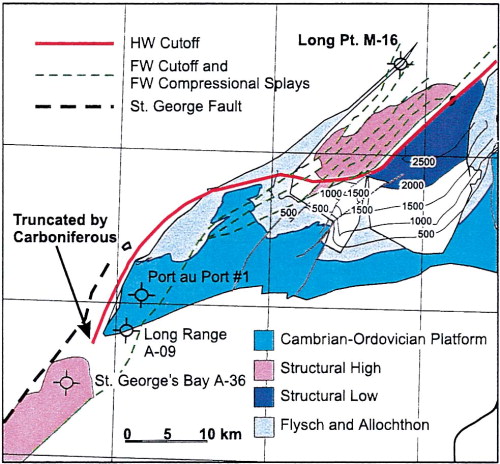

Figure 12. Depth structure map on the top of the Table Point Formation based on seismic data, well data, and surface geology; contours are in meters subsea. The Round Head fault is in net extension where the hanging-wall cutoff (HWC) lies to the southeast of the footwall cutoff (FWC) and in net compression where the HWC lies to the northwest of the FWC.
