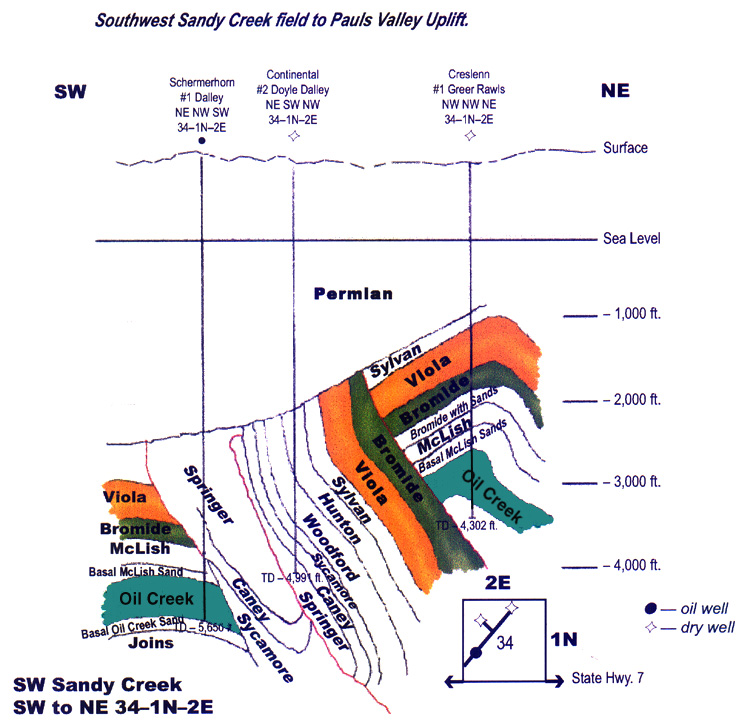

Figure 20. Cross-section, Southwest Sandy Creek Field - Pauls Valley Uplift, with the former lying southwest of faulted, tightly folded, overturned syncline, which in turn is southwest of anticlinal feature in the upthrown block of reverse fault bounding the uplift, all below a major unconformity. Location (part of Area 6) in Figure 14.
