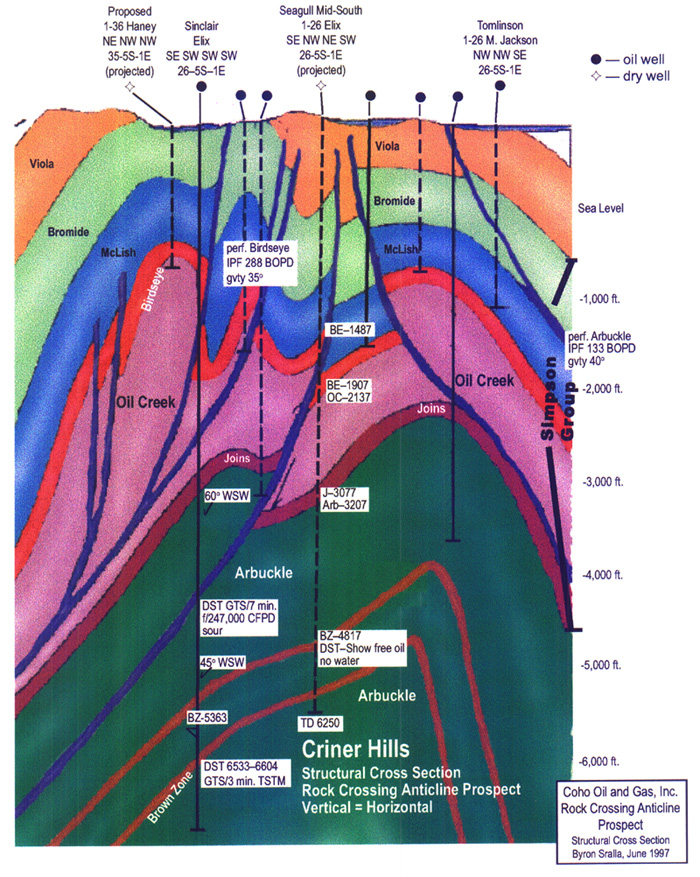

Figure 12. Cross-section, Southwest Ardmore Field, southeast Criner Hills, showing tightly folded beds cut by high-angle reverse faults. Location in Figure 11.
