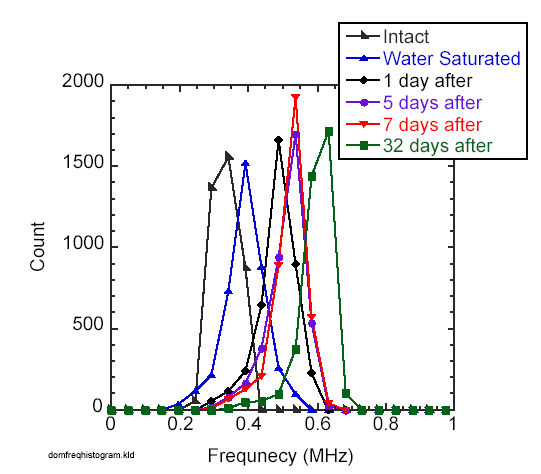

Figure 2. Histogram of the most probable frequency determined from 3844 compressional-wave signals (representing a 62 mm x 62 mm region of the fracture) for an intact sample, the intact sample after inducing a fracture and saturating the fracture with water, and for 1, 5, 7 and 32 days after chemical invasion in the induced fracture.
