--> Figure 2

Datapages, Inc.Print this page

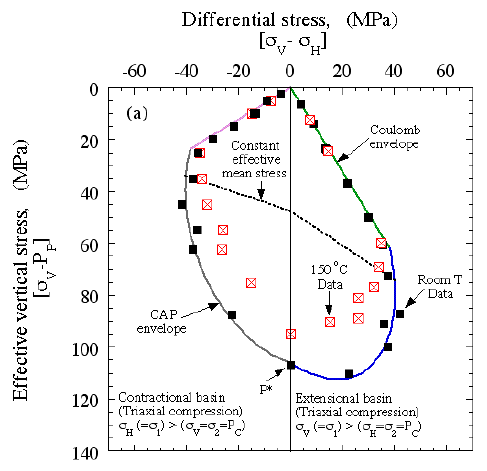

Figure 2: Macroscopic yield strength envelope for St Peter quartz sand cast in terms of vertical stress within sedimentary basins. We predict a skewing of the failure envelope towards shallower depths in contractional basins. Increased temperatures serve to shallow the non-linear (higher stress) portions of the failure curve. Within the failure envelope, porosity evolution may be predicted from a knowledge of mean stress.
