--> Figure 2. Well logs and other data from the Texaco Tulugak well in the foothills belt of the Colville Basin.

Datapages, Inc.Print this page

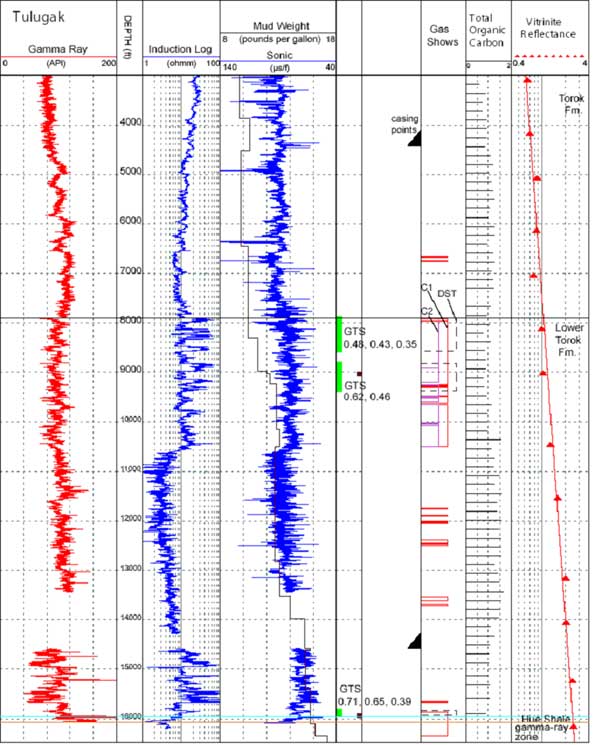

Figure 2. Well logs and other data from the Texaco Tulugak well in the foothills belt of the Colville Basin. Solid green bars drill-stem test intervals with pressure gradients in pse/ft; GTS indicates that gas flowed to surface during the test. Red lines in gas show column indicate depth extent of gas shows from drill-stem tests (DST) and mud log (C1, methane; C2, ethane and heavier gases). Total organic carbon and vitrinite reflectance were measured on drill cuttings.
