--> Figure 1. Comparison of burial histories at Jonah vs. Pinedale and resulting gas generation timing.

Datapages, Inc.Print this page

Click on individual images for enlargement.

Jonah Field Area (27-T29N-R108W, Sublette Co, WY – McMurry Stud Horse Butte 13-27)    Pinedale Anticline Area (05-T30N-R108W, Sublette Co, WY – El Paso Wagon Wheel 1)

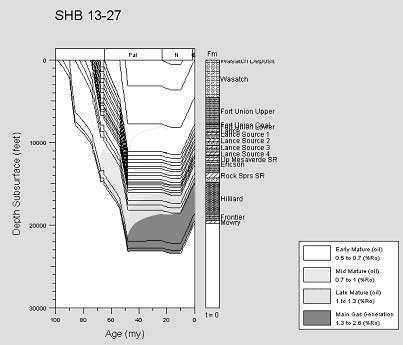

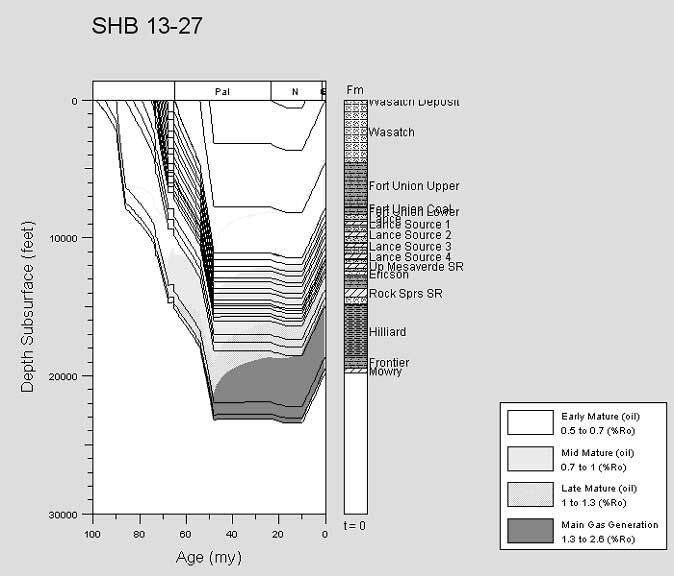

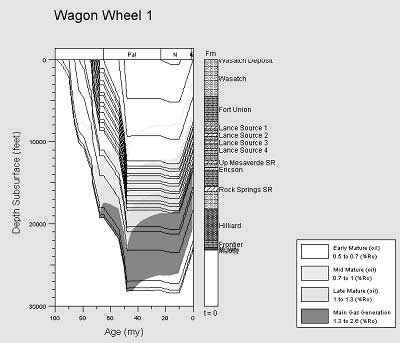

a) SHB 13-27 - Burial History d) Wagon Wheel 1 - Burial History

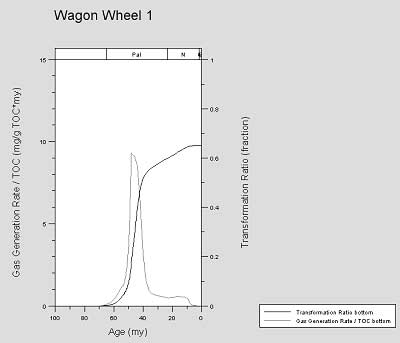

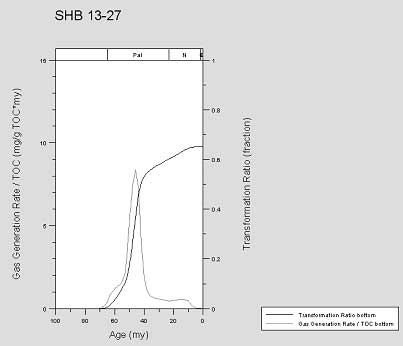

b) SHB 13-27 - Mesaverde Source - Gas generation rate and TR. e) Wagon Wheel 1 - Mesaverde Source - Gas generation rate and TR

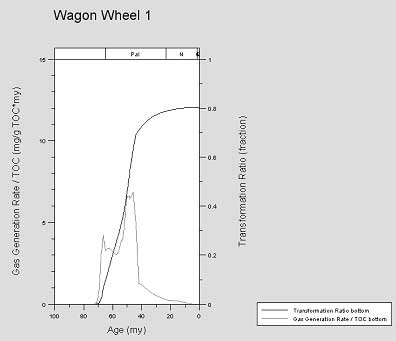

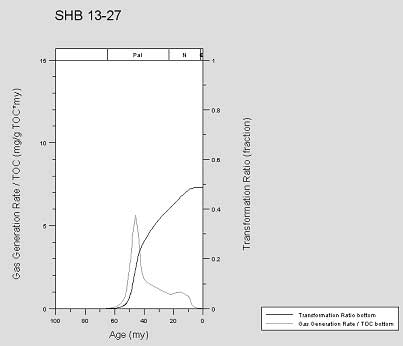

c) SHB 13-27 - Rock Springs Source - Gas generation rate and TR f) Wagon Wheel 1 – Rock Springs Source - Gas generation rate and TR

Figure 1. Comparison of burial histories at Jonah vs. Pinedale and resulting gas generation timing.
