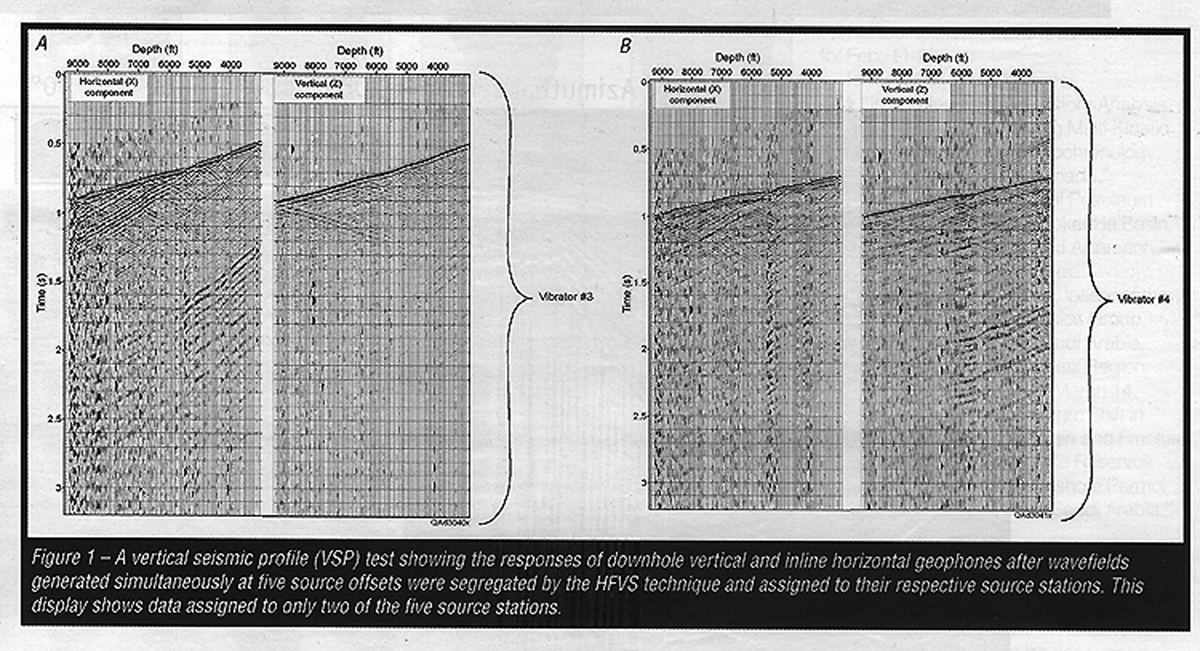

--> --> Figure 1. A vertical seismic profile (VSP) test showing the responses of downhole vertical and inline horizontal geophones after wavefields generated simultaneously at five source offsets were segregated by the HFVS technique and assigned to their respective source stations. This display shows data assigned to only two of the five source stations.
