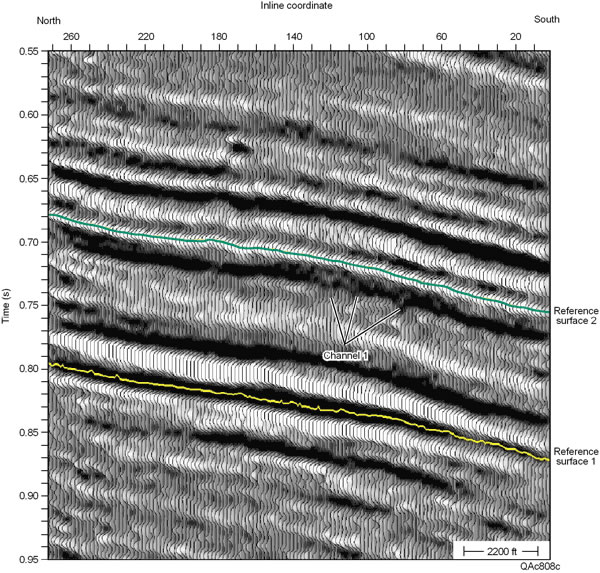

--> Figure 3. Seismic profile 222 shown on Figure 2. Reference surface 1 is the surface defined on profile 200 (Figure 1) below the channel target. Reference surface 2 is a second choice for a reference surface located above the channel that can be used to construct horizon slices that cut through the targeted channel complex.
