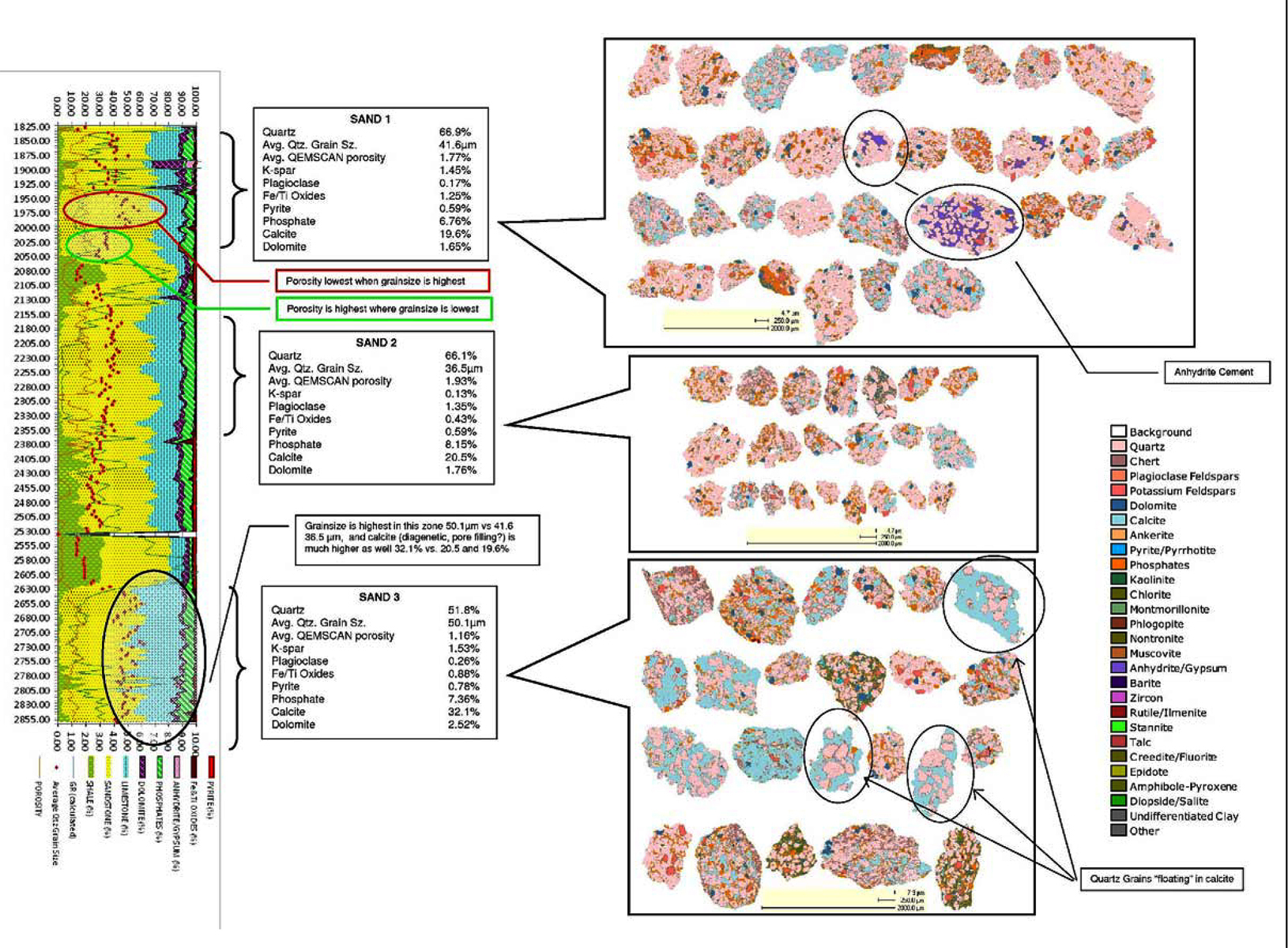

Figure 4: Breakdown of the horizontal well showing three unique sands with their mineralogy’s and a representative selection of particle maps to illustrate the different textures.
