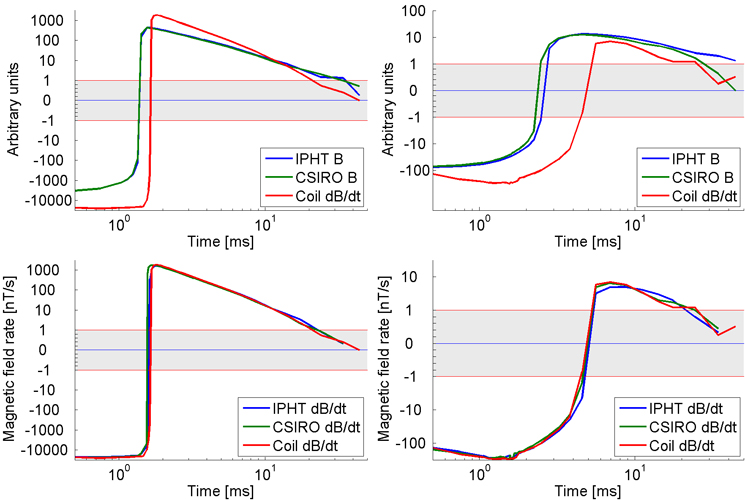

Figure 5. Transients 100m (left hand side) and 1000m (right hand side) outside the loop for SQUIDs and coil. Lower graphs with recalculated dB/dt for comparison.
