--> Figure 6: Surface restoration using the flexural slip approach at the base of the evaporites at the time of the Messinian crisis (5Ma).

Datapages, Inc.Print this page

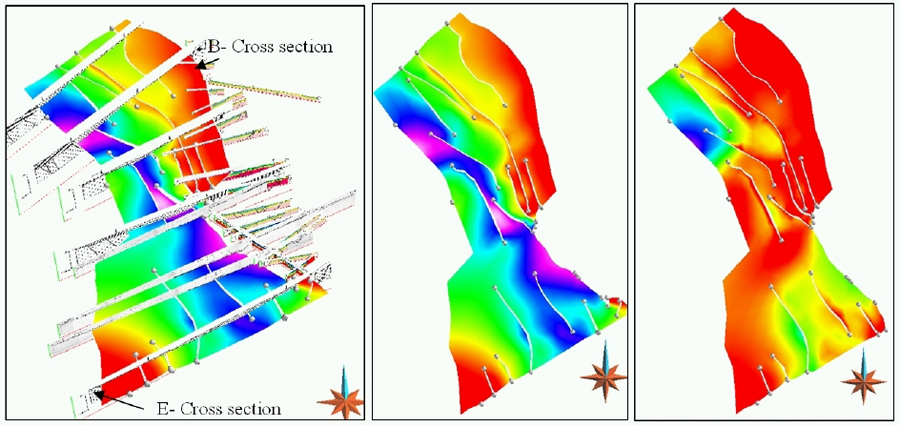

Figure 6: Surface restoration using the flexural slip approach at the base of the evaporites at the time of the Messinian crisis (5Ma). Color code for the depth, Red = zero. (left) 3D view; (center) top view of the current base of the evaporites in the Gulf; (right) restored geometry showing the arch between the two depocenters.
