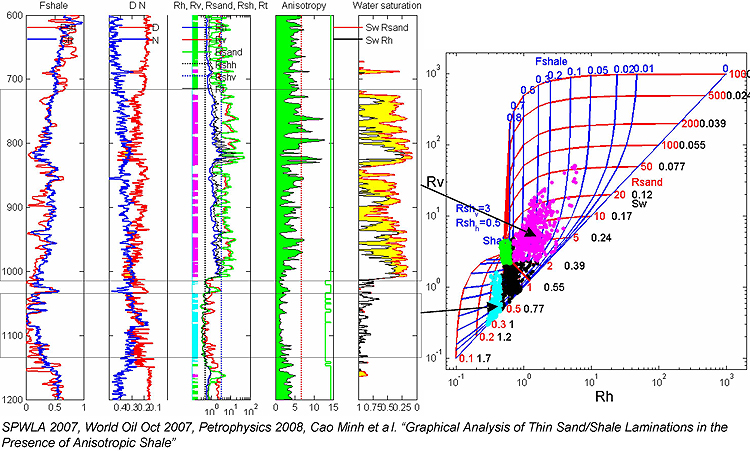

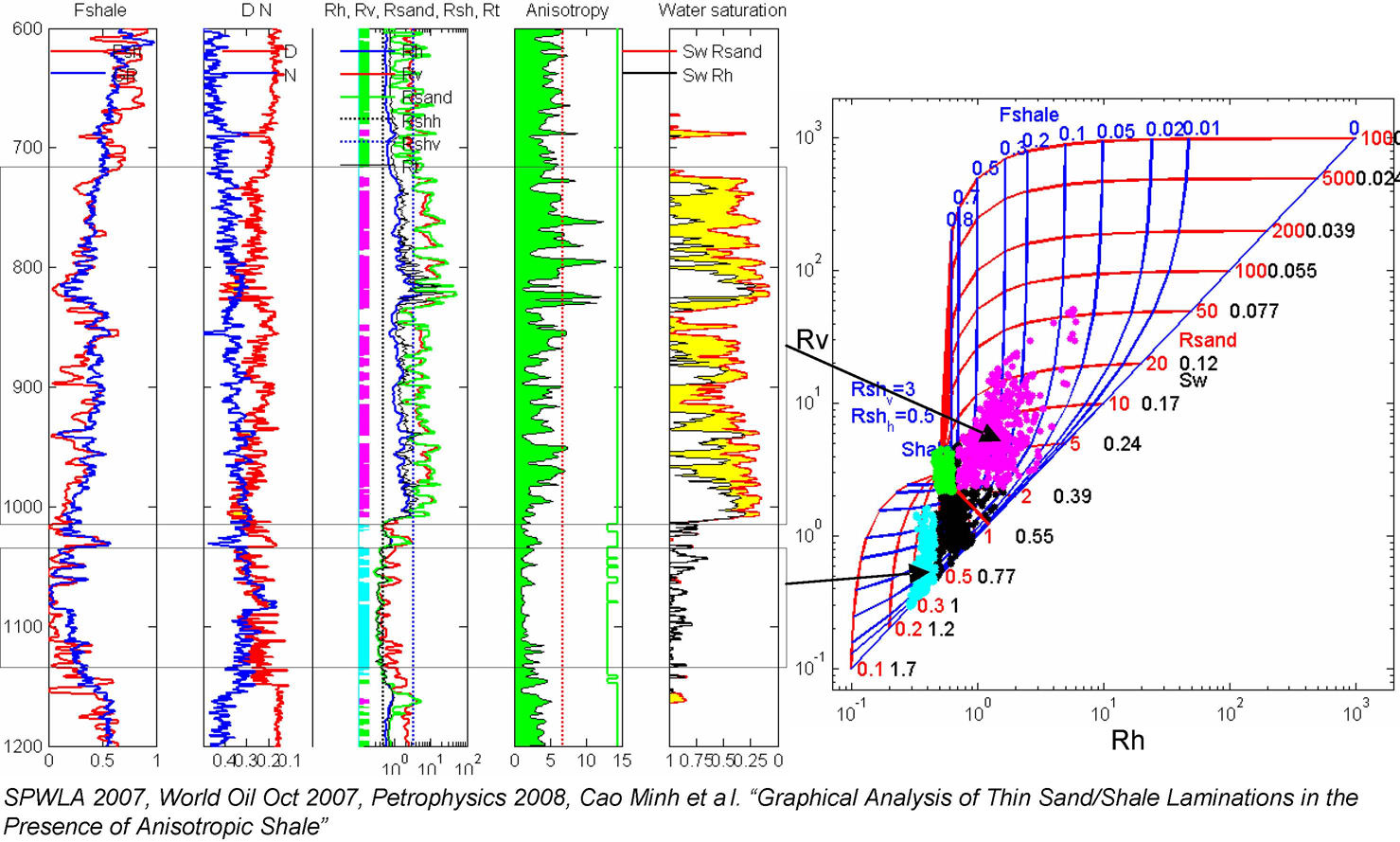

--> Figure 2. Hydrocarbon-bearing sand laminations show large anisotropy about 6. Water-bearing sands have anisotropy about 1. Shales have anisotropy about 4. The crossplot on the right shows the laminated pay (magenta), water (cyan) and shale (green).
