--> Figure 11. High pressure, mercury injection capillary pressure data converted to height above free water level.

Datapages, Inc.Print this page

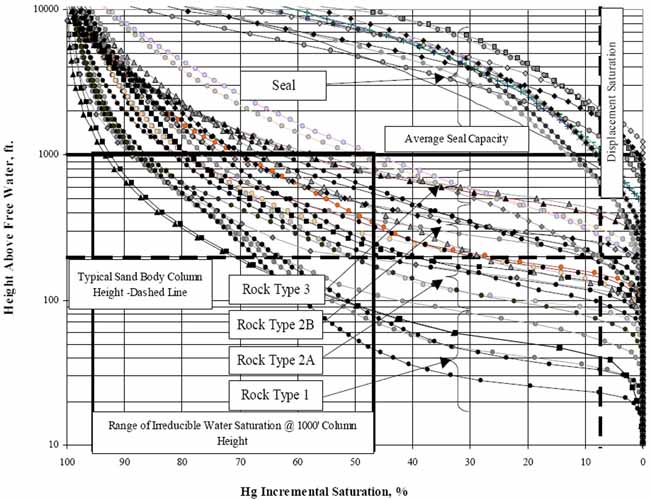

Figure 11. High pressure, mercury injection capillary pressure data converted to height above free water level. Note that the range of initial water saturation at 200 ft of column height is 30%-100%. It takes 1000 ft-2000 ft of column height to have water saturation in the measured range of 5%-40%.
